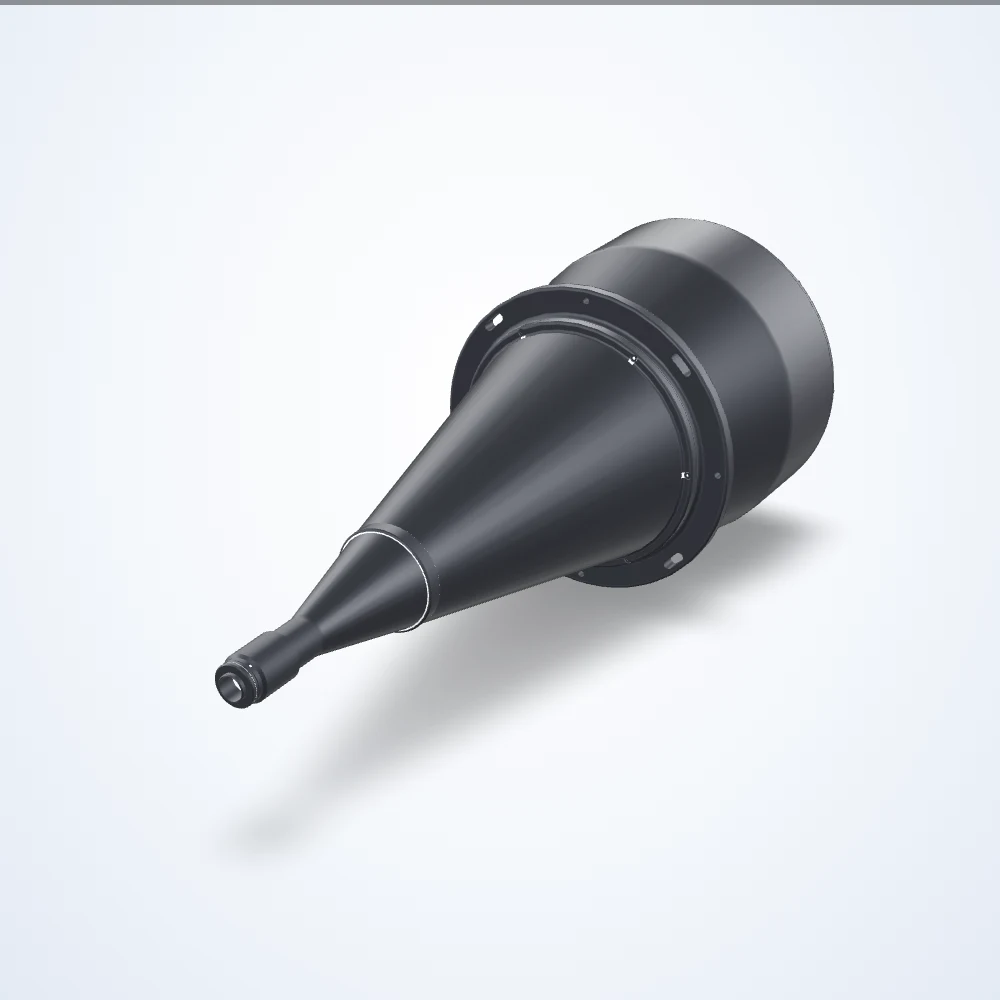

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.073× telecentric lens, 4/3", C-Mount (LS-TCL-0332)
Model LS-TCL-0332
0.073× telecentric lens, 4/3", C-Mount. Working distance 492.8 mm. Depth of field 77.7 mm.
Specifications
| Model | LS-TCL-0332 |
|---|---|
| Depth Of Field | 77.7 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.04 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 194.38 x 102.88 mm |
| FoV @ 4/3″ | 259.32 x 145.34 mm |
| Fov @ 1.1″ | 193.97 x 142.05 mm |
| Front Diameter | 322 mm |
| Image Circle Diameter | 21.8 mm |
| Imager Format | 4/3" |
| Lens Type | Telecentric |
| Magnification | 0.073× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 70 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.04° |
| Working Distance | 492.8 mm |
| Working ƒ/N | f/8 |
