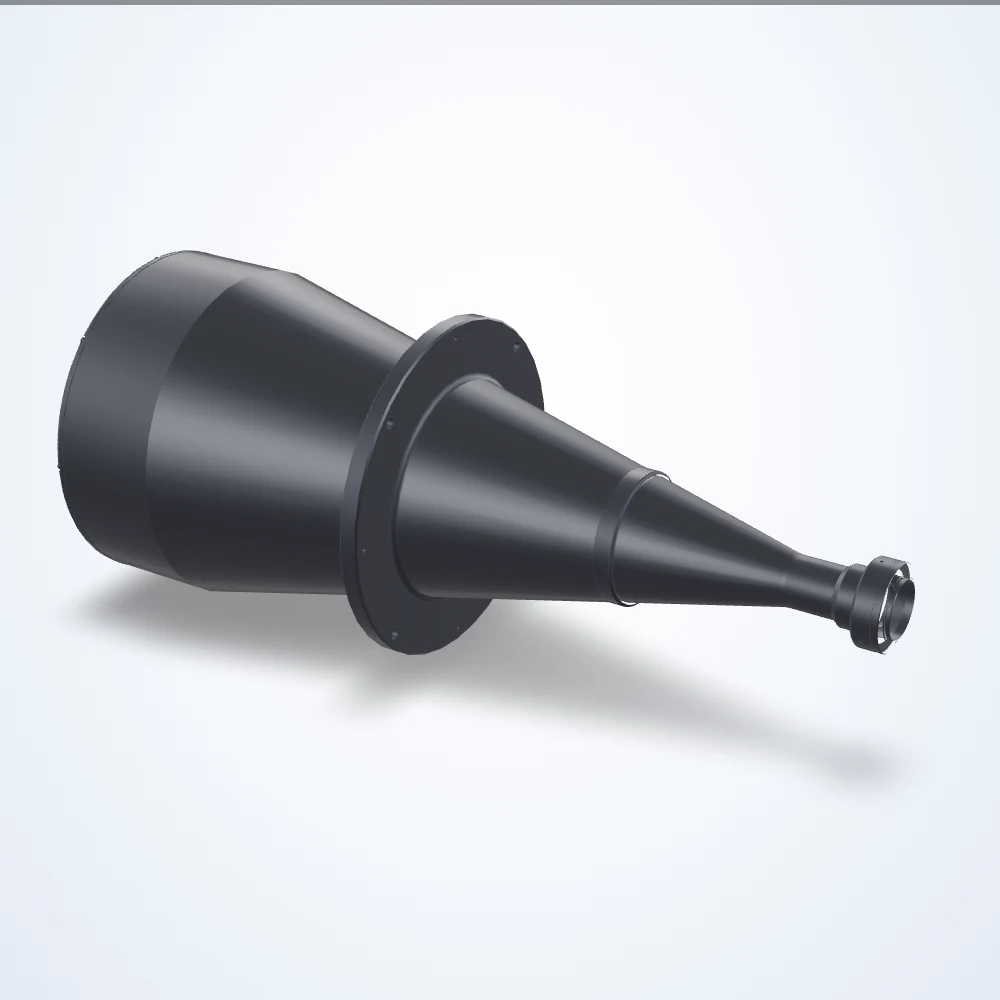

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.091× telecentric lens, 4/3", F-mount (LS-TCL-0330)
Model LS-TCL-0330
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 527.6 mm; depth of field 50 mm.
Specifications
| Model | LS-TCL-0330 |
|---|---|
| Magnification | 0.091× |
| Working distance | 527.6 mm |
| Sensor format | 4/3" |
| Mount | F-Mount |
| Depth of field | 50 mm |
| Dimensions approximate | 632 x 260 x 260 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 155.60 x 113.96 mm |
| Fov @ 1″ | 155.93 x 82.53 mm |
| Fov @ 4/3″ | 208.02 x 116.59 mm |
| Front diameter | 260 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 56 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/8 |
| Weight | 10040 Grams |
