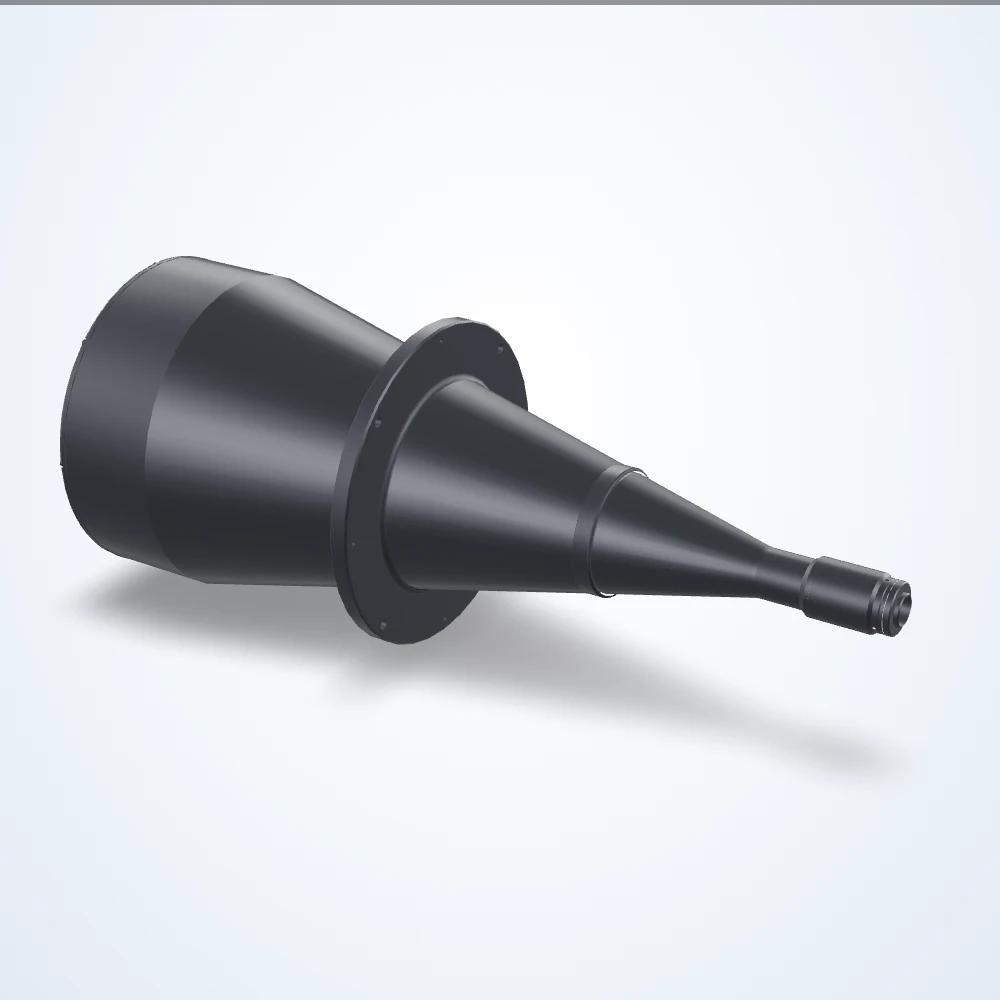

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.091× telecentric lens, 4/3", C-Mount (LS-TCL-0329)
Model LS-TCL-0329
0.091× telecentric lens, 4/3", C-Mount. Working distance 527.6 mm. Depth of field 50 mm.
Specifications
| Model | LS-TCL-0329 |
|---|---|
| Depth Of Field | 50 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.08 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 155.93 x 82.53 mm |
| FoV @ 4/3″ | 208.02 x 116.59 mm |
| Fov @ 1.1″ | 155.60 x 113.96 mm |
| Front Diameter | 260 mm |
| Image Circle Diameter | 22 mm |
| Imager Format | 4/3" |
| Lens Type | Telecentric |
| Magnification | 0.091× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 56 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.04° |
| Working Distance | 527.6 mm |
| Working ƒ/N | f/8 |
