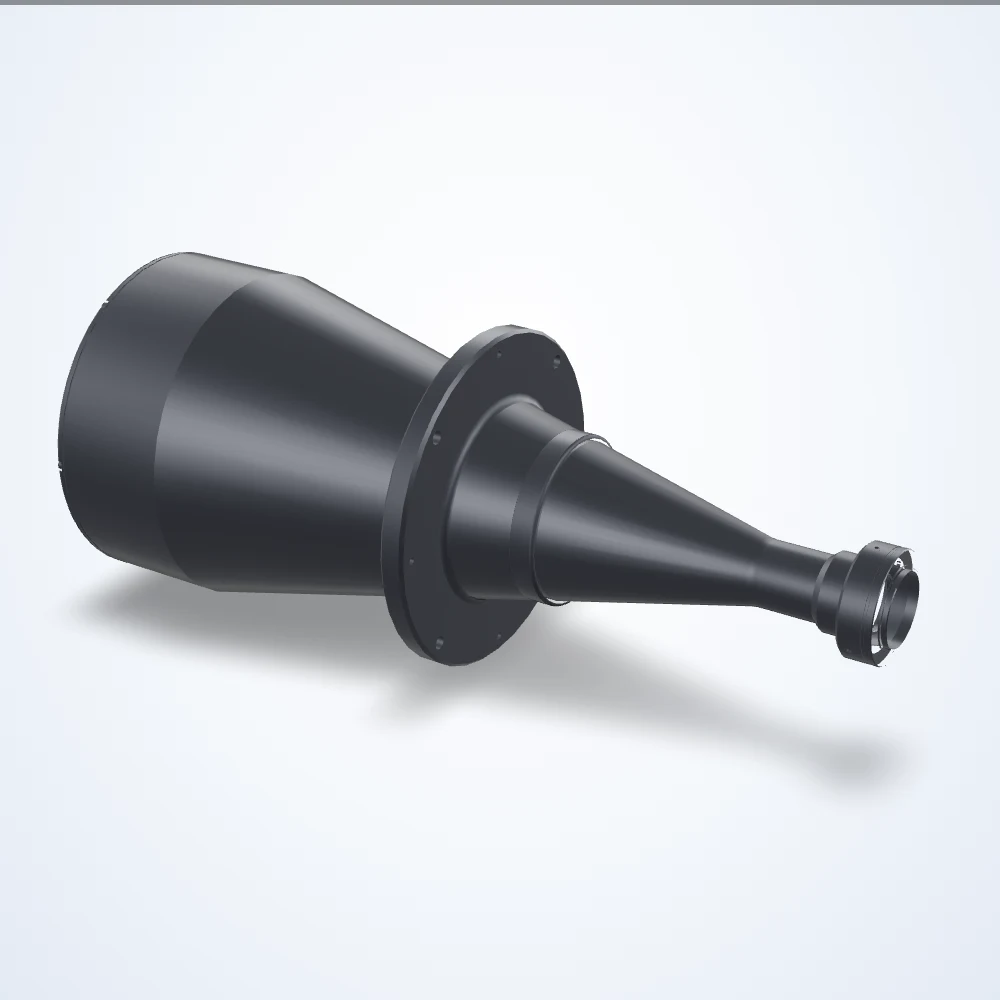

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.122× telecentric lens, 4/3", F-mount (LS-TCL-0327)
Model LS-TCL-0327
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 396 mm; depth of field 27.8 mm.
Specifications
| Model | LS-TCL-0327 |
|---|---|
| Magnification | 0.122× |
| Working distance | 396 mm |
| Sensor format | 4/3" |
| Mount | F-Mount |
| Depth of field | 27.8 mm |
| Dimensions approximate | 491.6 x 200 x 200 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 116.07 x 85 mm |
| Fov @ 1″ | 116.31 x 61.56 mm |
| Fov @ 4/3″ | 155.16 x 86.97 mm |
| Front diameter | 200 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 42 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 5990 Grams |
