Telecentric lenses

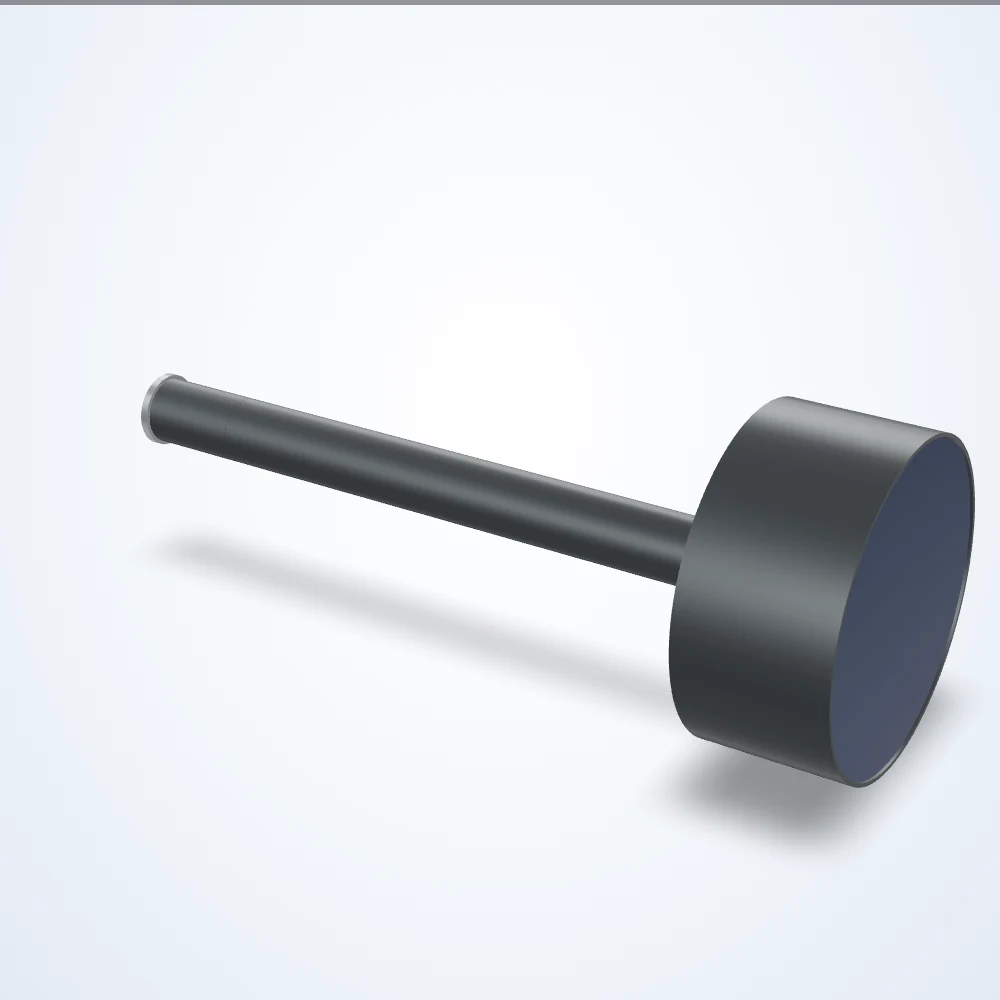

0.143× telecentric lens, 4/3", M42-mount (LS-TCL-0325)
Model LS-TCL-0325
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error.
Specifications
| Model | LS-TCL-0325 |
|---|---|
| Mount | M42-mount |
| Clear aperture | Ø166 |
| Dimensions (dia. x length, mm) | 180 x 466.59 |
| Dimensions approximate | 466.6 x 180 x 180 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Flange distance | 12 mm (Mount M42x1) |
| Fov @ 1.1″ | 99.02 x 72.52 mm |
| Fov @ 1″ | 99.23 x 52.52 mm |
| Fov @ 4/3″ | 132.38 x 74.20 mm |
| Front clamping diameter | Ø180 h8 |
| Front diameter | 180 mm |
| Front flange holes | M5 x4 and Ø8 x4 on Ø165 circle |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Other diameters | Ø180 h8 (second clamping/flange), Ø100 (rear cone start), Ø37.80 h8 (rear clamping), Ø45, Ø52 (mount ring) |
| Phase adjustment | yes |
| Rear protrusion behind mount | 3.31 mm |
| Resolution (pixel size) | 35 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight (g) | 4816 |
