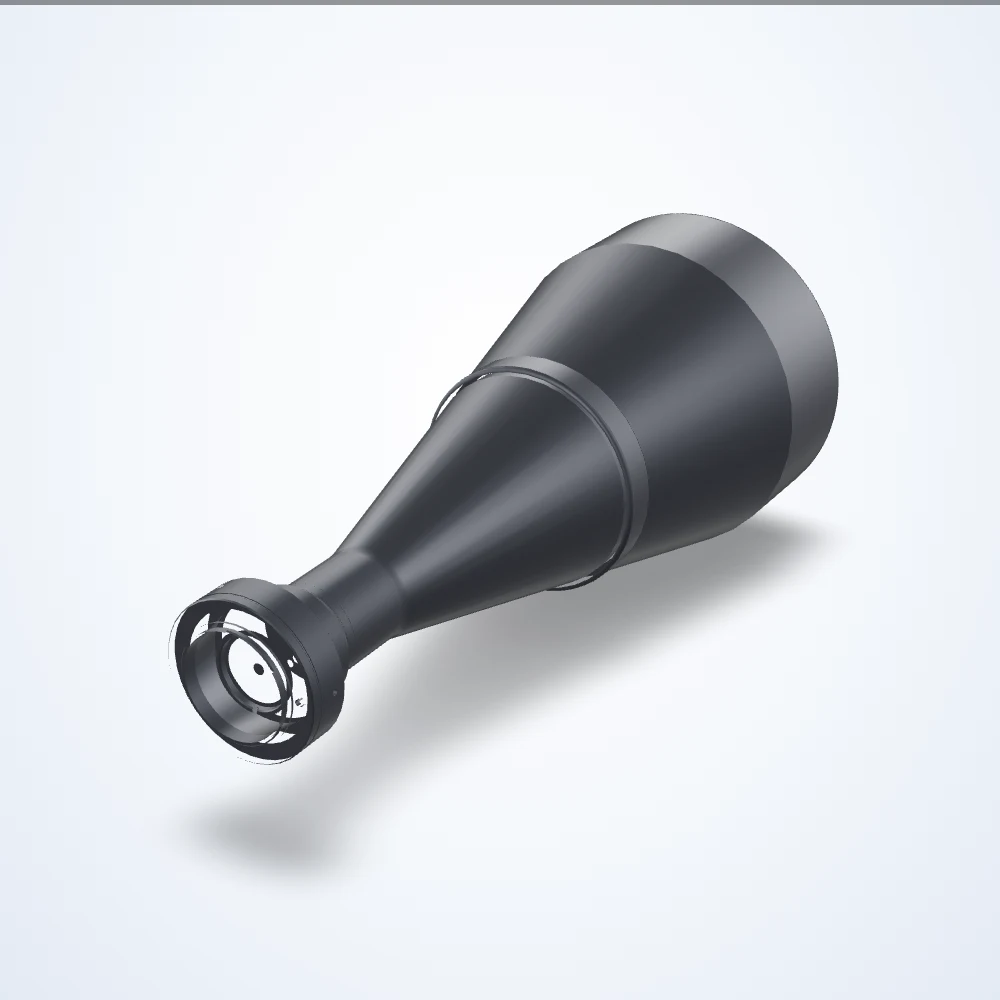

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.185× telecentric lens, 4/3", F-Mount (LS-TCL-0321)
Model LS-TCL-0321
0.185× telecentric lens, 4/3", F-Mount. Working distance 278.6 mm. Depth of field 12.1 mm.
Specifications
| Model | LS-TCL-0321 |
|---|---|
| Depth Of Field | 12.1 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.04 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 76.70 x 40.59 mm |
| FoV @ 4/3″ | 102.32 x 57.35 mm |
| Fov @ 1.1″ | 76.54 x 56.05 mm |
| Front Diameter | 143 mm |
| Image Circle Diameter | 22 mm |
| Imager Format | 4/3" |
| Lens Type | Telecentric |
| Magnification | 0.185× |
| Mount | F-Mount |
| Resolution (Pixel Size) | 27 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.05° |
| Working Distance | 278.6 mm |
| Working ƒ/N | f/8 |
