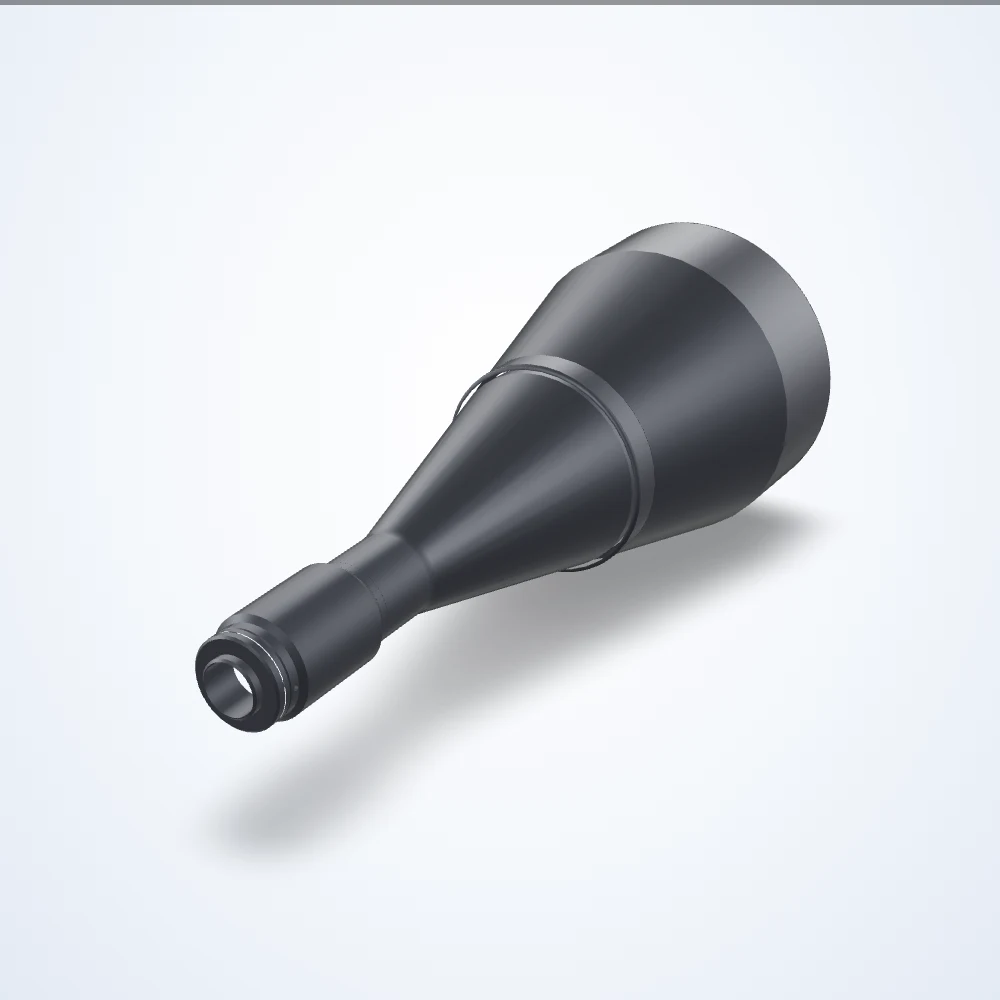

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.185× telecentric lens, 4/3", C-mount (LS-TCL-0320)
Model LS-TCL-0320
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 12.1 mm.
Specifications
| Model | LS-TCL-0320 |
|---|---|
| Magnification | 0.185× |
| Working distance | 278.6 mm |
| Sensor format | 4/3" |
| Mount | C-Mount |
| Depth of field | 12.1 mm |
| Dimensions approximate | 374.7 x 143 x 143 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 76.54 x 56.05 mm |
| Fov @ 1″ | 76.70 x 40.59 mm |
| Fov @ 4/3″ | 102.32 x 57.35 mm |
| Front diameter | 143 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 27 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 2304 Grams |
