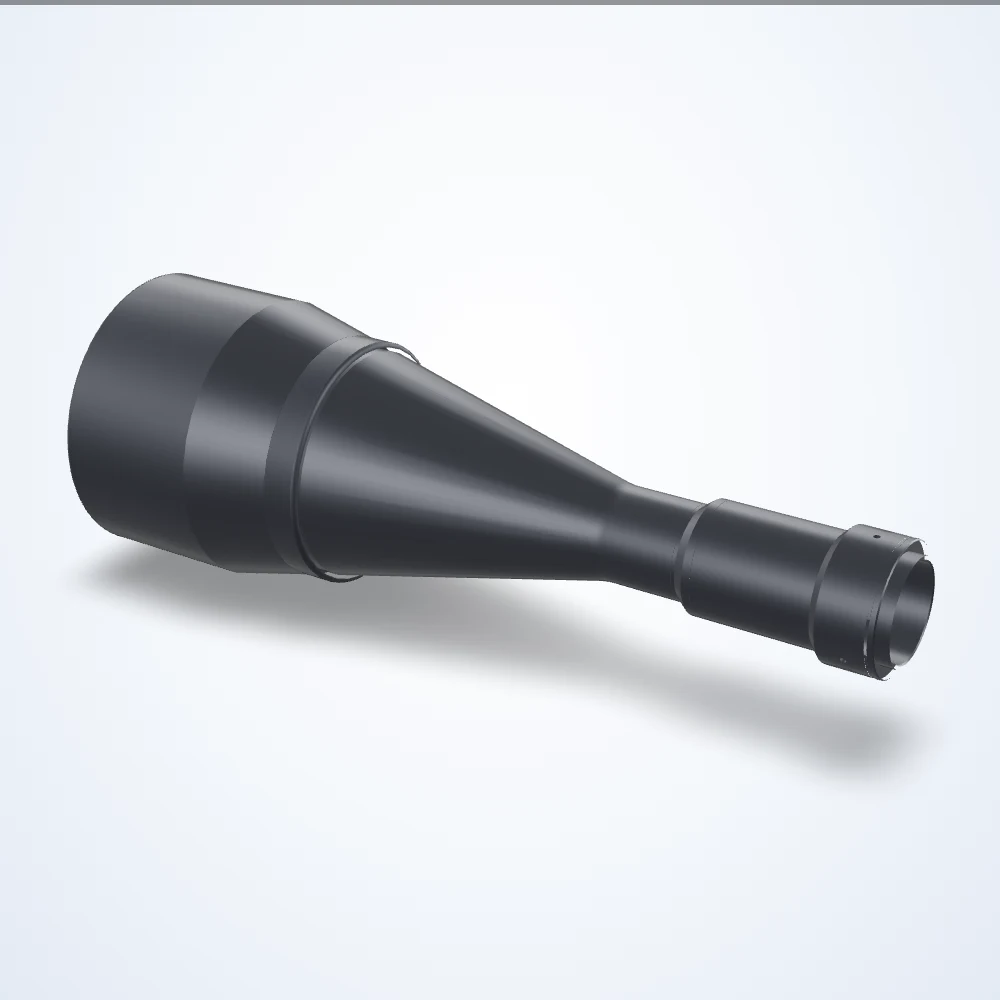

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.22× telecentric lens, 4/3", M42-mount (LS-TCL-0319)
Model LS-TCL-0319
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.8 mm; depth of field 8.6 mm.
Specifications
| Model | LS-TCL-0319 |
|---|---|
| Magnification | 0.22× |
| Working distance | 226.8 mm |
| Sensor format | 4/3" |
| Mount | M42-Mount |
| Depth of field | 8.6 mm |
| Dimensions approximate | 340 x 116 x 116 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 64.36 x 47.14 mm |
| Fov @ 1″ | 64.50 x 34.14 mm |
| Fov @ 4/3″ | 86.05 x 48.23 mm |
| Front diameter | 116 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 23 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/8 |
| Weight | 1564 Grams |
