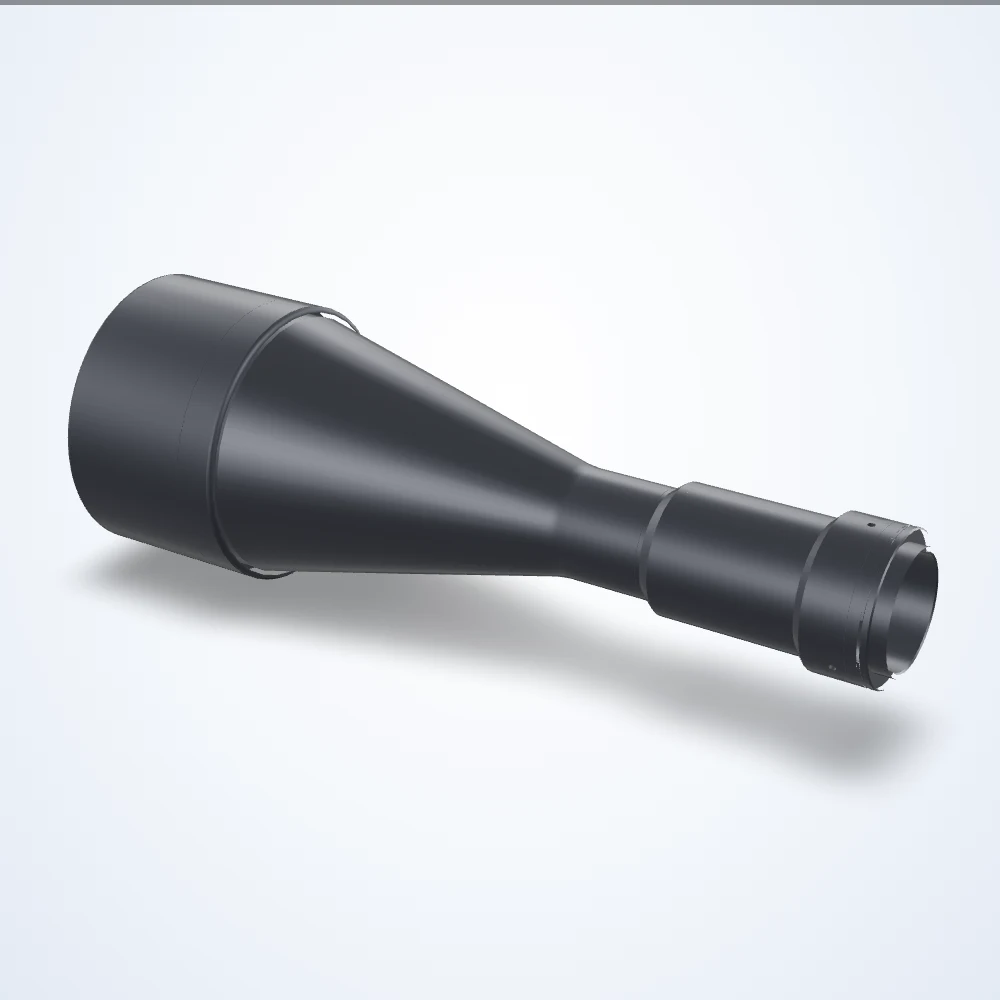

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.274× telecentric lens, 4/3", M42-mount (LS-TCL-0316)
Model LS-TCL-0316
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.9 mm; depth of field 5.5 mm.
Specifications
| Model | LS-TCL-0316 |
|---|---|
| Magnification | 0.274× |
| Working distance | 181.9 mm |
| Sensor format | 4/3" |
| Mount | M42-Mount |
| Depth of field | 5.5 mm |
| Dimensions approximate | 294.2 x 100 x 100 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 51.68 x 37.85 mm |
| Fov @ 1″ | 51.79 x 27.41 mm |
| Fov @ 4/3″ | 69.09 x 38.72 mm |
| Front diameter | 100 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 19 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/8 |
| Weight | 1131 Grams |
