Home / Lenses / Telecentric lenses / 0.159× telecentric lens, 4K, F-Mount

0.159× telecentric lens, 4K, F-Mount (LS-TCL-0288)

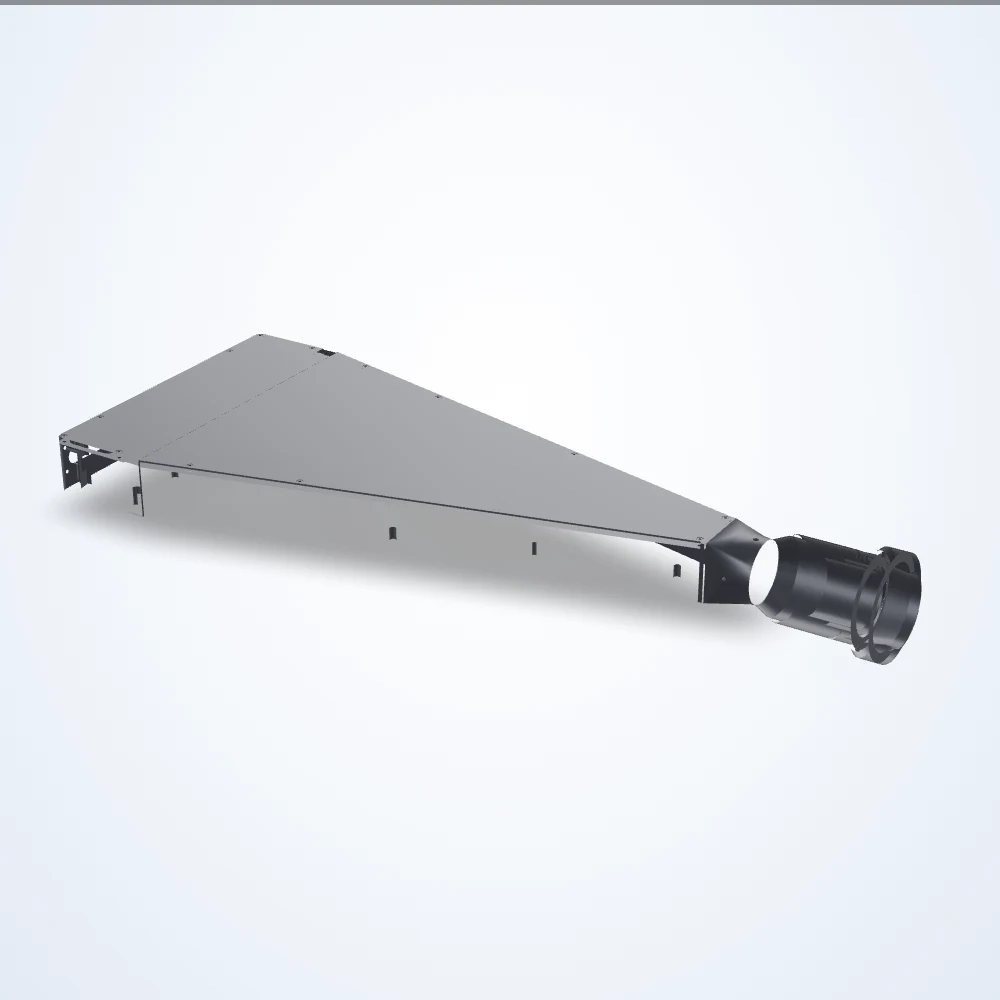

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.159× telecentric lens, 4K, F-Mount (LS-TCL-0288)

Model LS-TCL-0288

0.159× telecentric lens, 4K, F-Mount. Working distance 254 mm. Depth of field 66.5 mm.

Datasheet (PDF) - LS-TCL-0288 3D model (STEP) - LS-TCL-0288

Specifications

Model	LS-TCL-0288
Depth Of Field	66.5 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.08
Filter Thread	No Filter Threads
Image Circle Diameter	28.7 mm
Imager Format	4K
Lens Type	Telecentric
Line 2k-5µm	90.19 mm
Line 4k-7µm	64.4 mm
Magnification	0.159×
Mount	F-Mount
Resolution (Pixel Size)	64 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	254 mm
Working ƒ/N	f/16
