0.24× telecentric lens, 4K, M42-Mount (LS-TCL-0287)

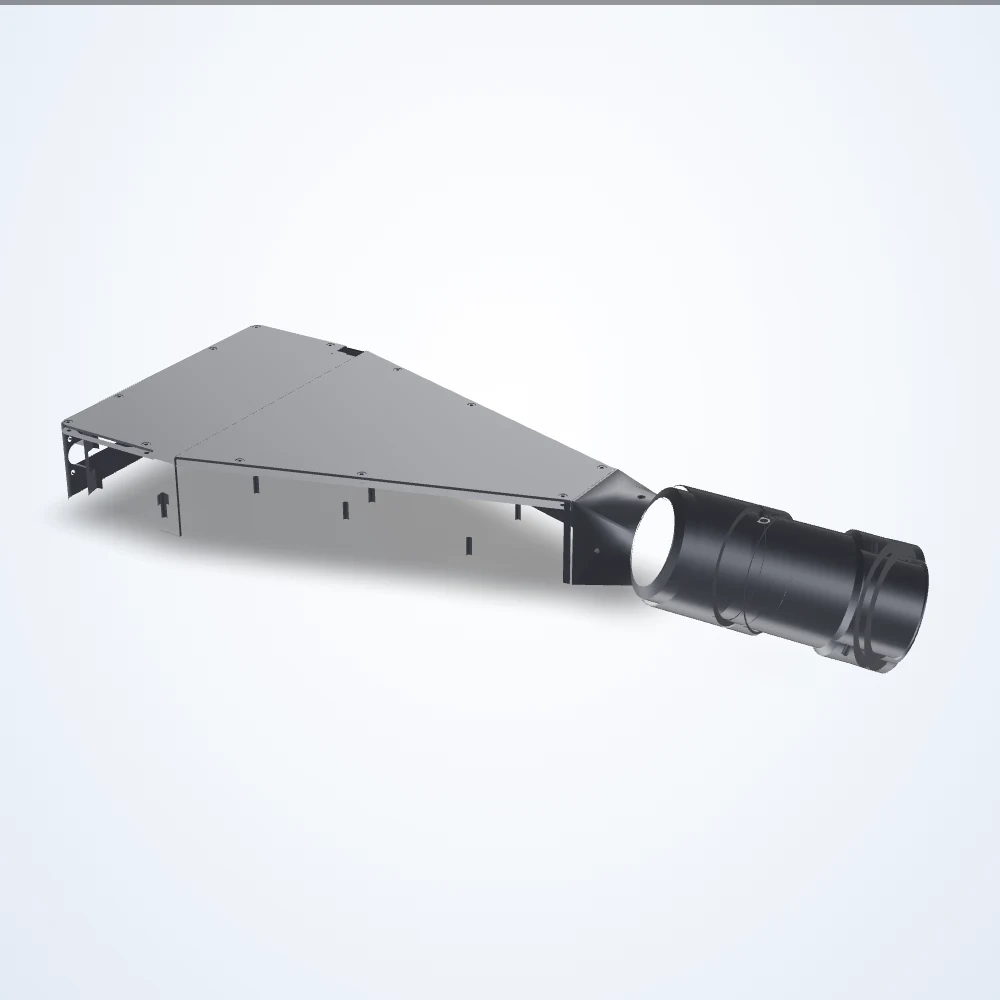

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.24× telecentric lens, 4K, M42-Mount (LS-TCL-0287)

Model LS-TCL-0287

0.24× telecentric lens, 4K, M42-Mount. Working distance 174 mm. Depth of field 29.2 mm.

Datasheet (PDF) - LS-TCL-0287 3D model (STEP) - LS-TCL-0287

Specifications

Model	LS-TCL-0287
Depth Of Field	29.2 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.08
Filter Thread	No Filter Threads
Image Circle Diameter	28.7 mm
Imager Format	4K
Lens Type	Telecentric
Line 2k-5µm	59.75 mm
Line 4k-7µm	42.67 mm
Magnification	0.24×
Mount	M42-Mount
Resolution (Pixel Size)	42 μm
Telecentricity Maximum	0.12°
Telecentricity Typical	< 0.1°
Working Distance	174 mm
Working ƒ/N	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
