Home / Lenses / Telecentric lenses / 0.478× telecentric lens, 4K, M42-Mount

0.478× telecentric lens, 4K, M42-Mount (LS-TCL-0282)

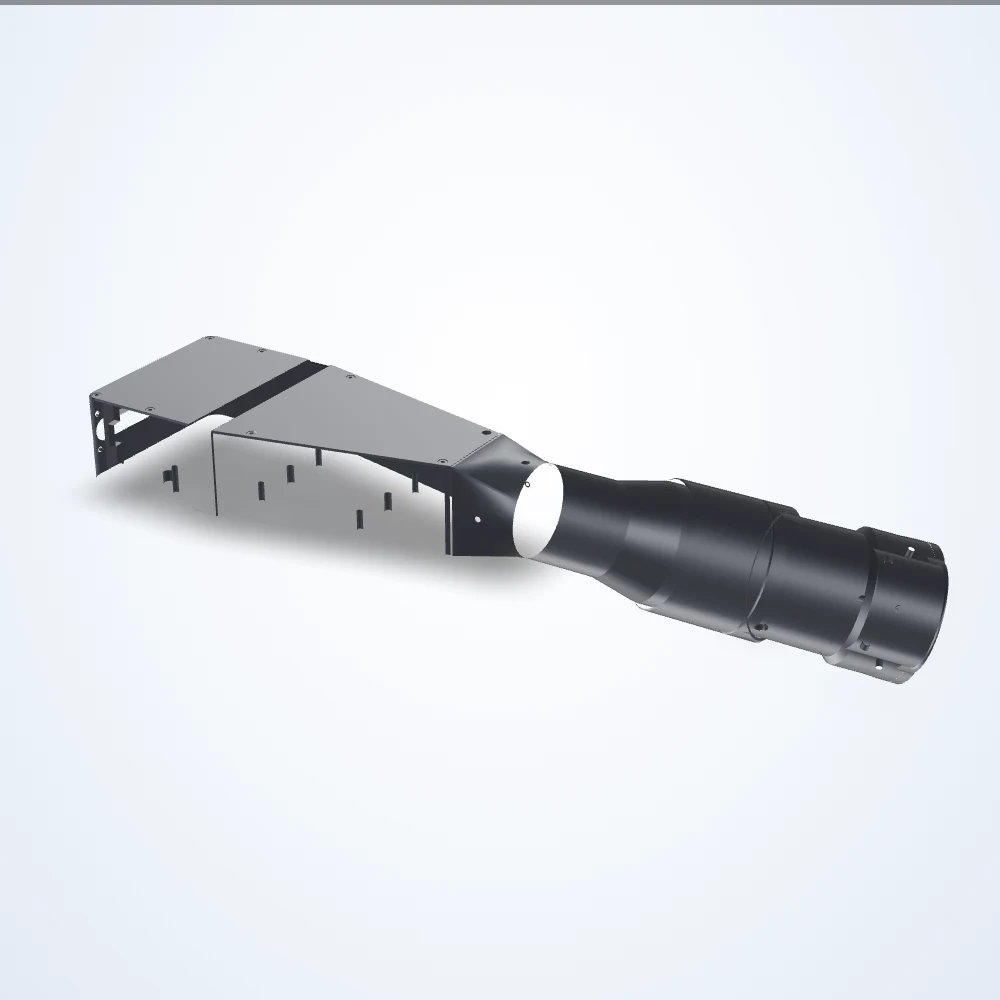

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.478× telecentric lens, 4K, M42-Mount (LS-TCL-0282)

Model LS-TCL-0282

0.478× telecentric lens, 4K, M42-Mount. Working distance 174 mm. Depth of field 7.4 mm.

Datasheet (PDF) - LS-TCL-0282 3D model (STEP) - LS-TCL-0282

Specifications

Model	LS-TCL-0282
Depth Of Field	7.4 mm
Distortion Maximum (%)	< 0.08
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
Image Circle Diameter	28.7 mm
Imager Format	4K
Lens Type	Telecentric
Line 2k-5µm	21.42 mm
Line 4k-7µm	59.98 mm
Magnification	0.478×
Mount	M42-Mount
Resolution (Pixel Size)	21 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.06°
Working Distance	174 mm
Working ƒ/N	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
