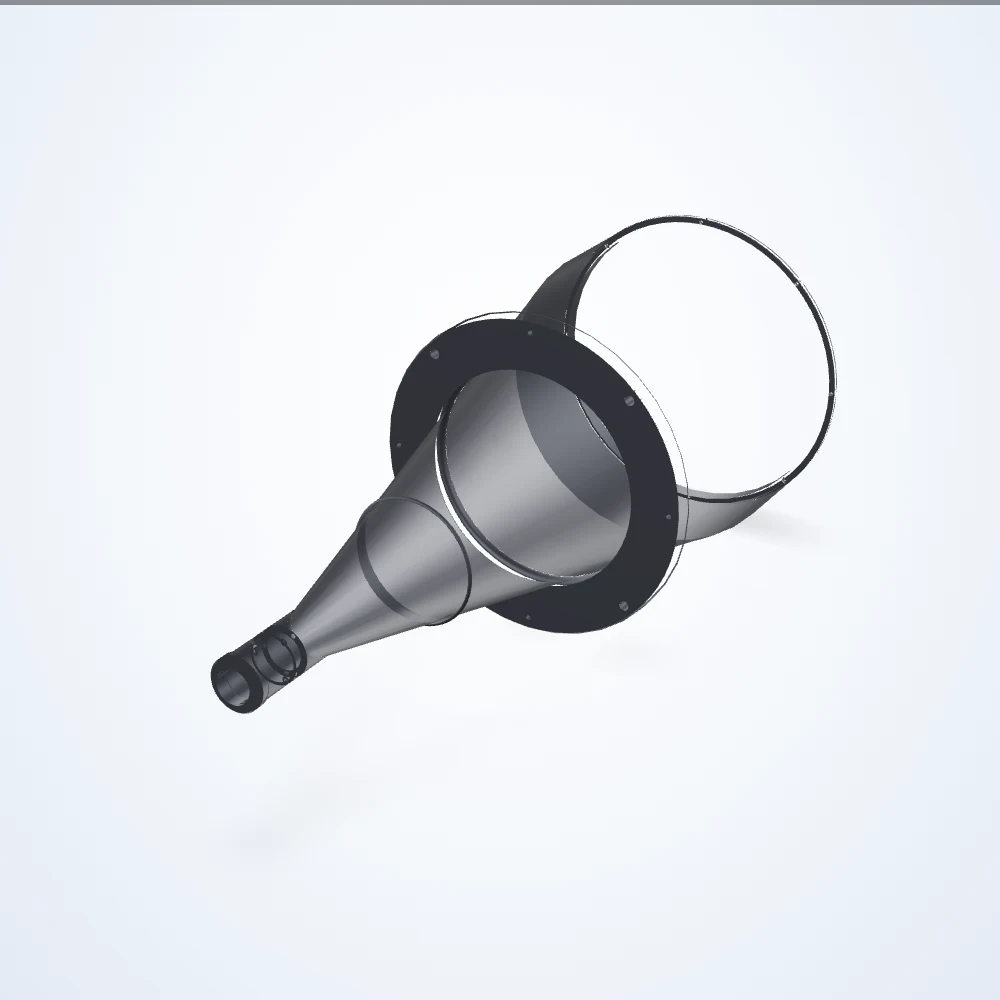

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.075× telecentric lens, 1.1", C-mount (LS-TCL-0279)
Model LS-TCL-0279
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 527.6 mm; depth of field 73.6 mm.
Specifications
| Model | LS-TCL-0279 |
|---|---|
| Magnification | 0.075× |
| Working distance | 527.6 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Depth of field | 73.6 mm |
| Dimensions approximate | 640.3 x 260 x 260 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 188.8 x 138.27 mm |
| Fov @ 1.2″ | 151.33 x 95.07 mm |
| Fov @ 1″ | 189.20 x 100.13 mm |
| Front diameter | 260 mm |
| Image circle | 17.6 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 68 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 9902 Grams |
