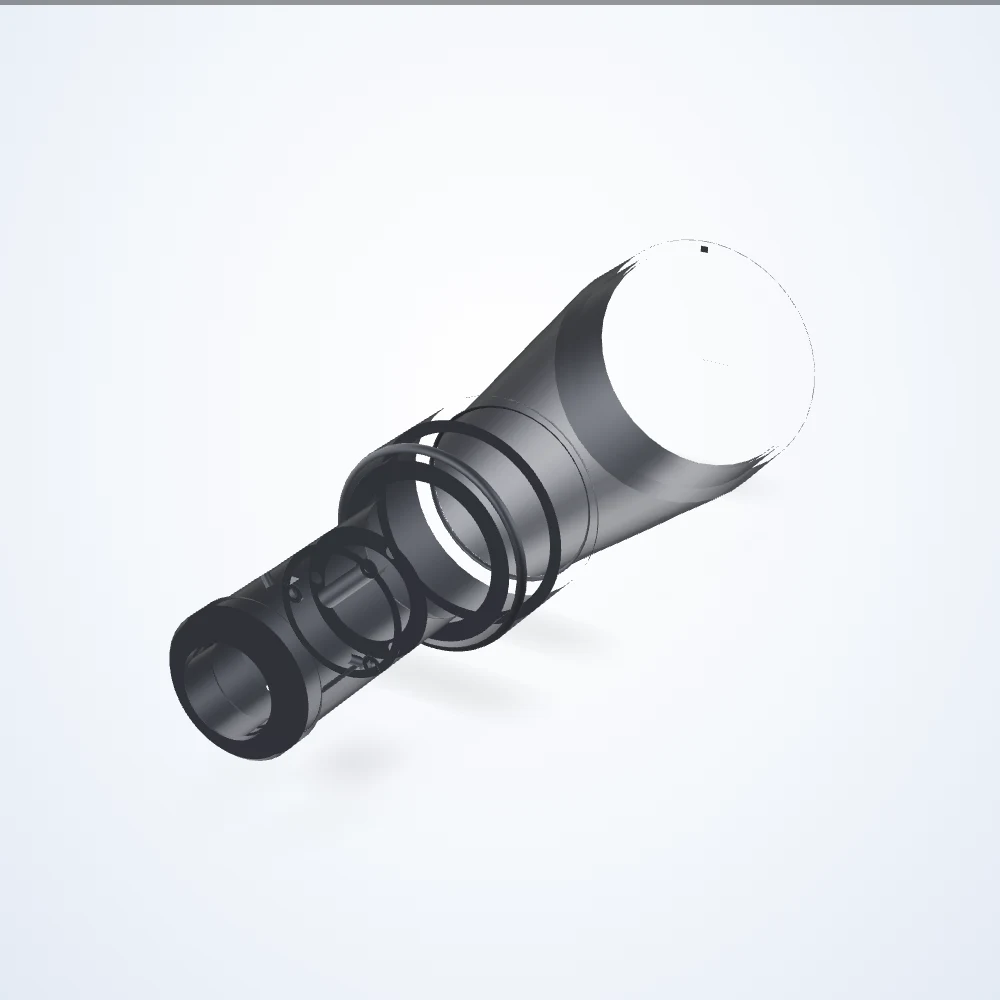

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.259× telecentric lens, 1.1", C-Mount (LS-TCL-0273)
Model LS-TCL-0273
0.259× telecentric lens, 1.1", C-Mount. Working distance 157.8 mm. Depth of field 6.2 mm.
Specifications
| Model | LS-TCL-0273 |
|---|---|
| Depth Of Field | 6.2 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.08 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 54.79 x 29 mm |
| Fov @ 1.1″ | 54.67 x 40.04 mm |
| Fov @ 1.2″ | 43.82 x 27.53 mm |
| Front Diameter | 80 mm |
| Image Circle Diameter | 17.6 mm |
| Imager Format | 1.1" |
| Lens Type | Telecentric |
| Magnification | 0.259× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 20 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.08° |
| Working Distance | 157.8 mm |
| Working ƒ/N | f/8 |
