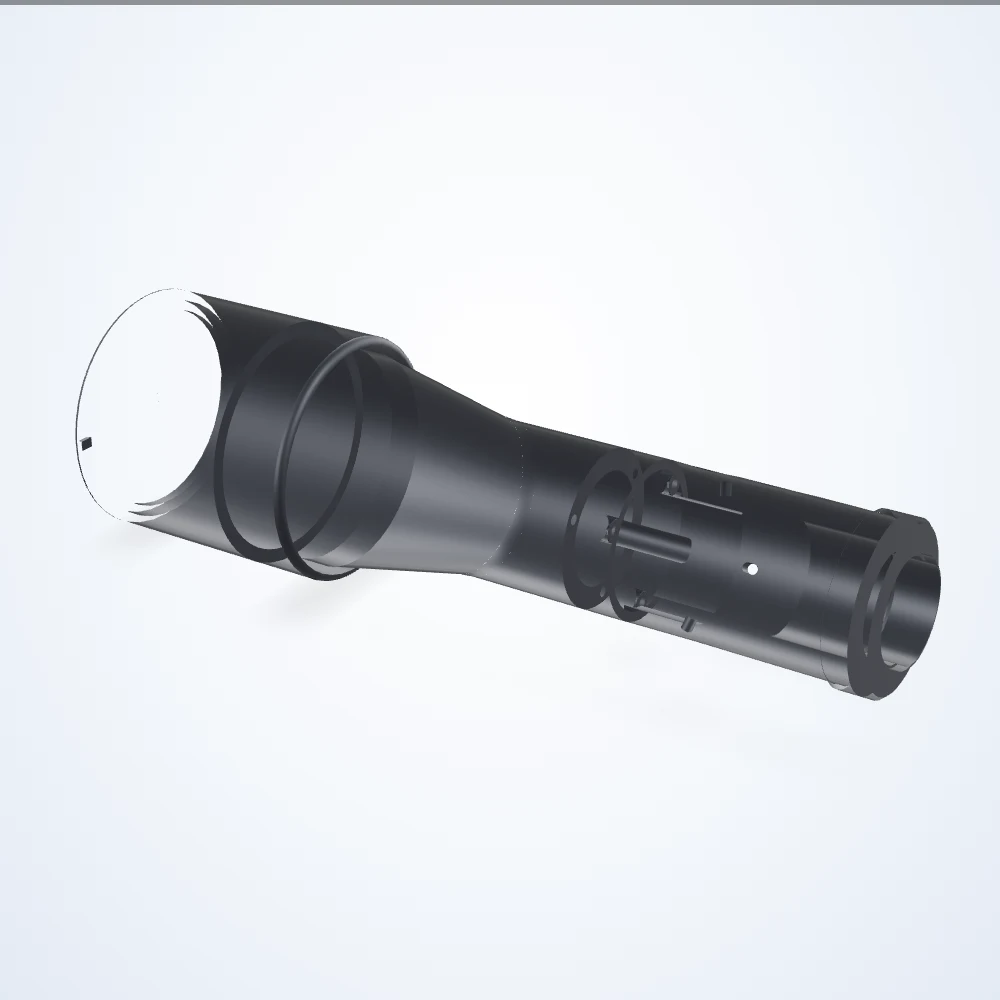

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.392× telecentric lens, 1.1", C-mount (LS-TCL-0271)
Model LS-TCL-0271
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.6 mm; depth of field 3.7 mm.
Specifications
| Model | LS-TCL-0271 |
|---|---|
| Magnification | 0.392× |
| Working distance | 102.6 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Depth of field | 3.7 mm |
| Dimensions approximate | 204.4 x 61 x 61 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 36.12 x 26.45 mm |
| Fov @ 1.2″ | 28.95 x 18.19 mm |
| Fov @ 1″ | 36.20 x 19.16 mm |
| Front diameter | 61 mm |
| Image circle | 17.6 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 18 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 543 Grams |
