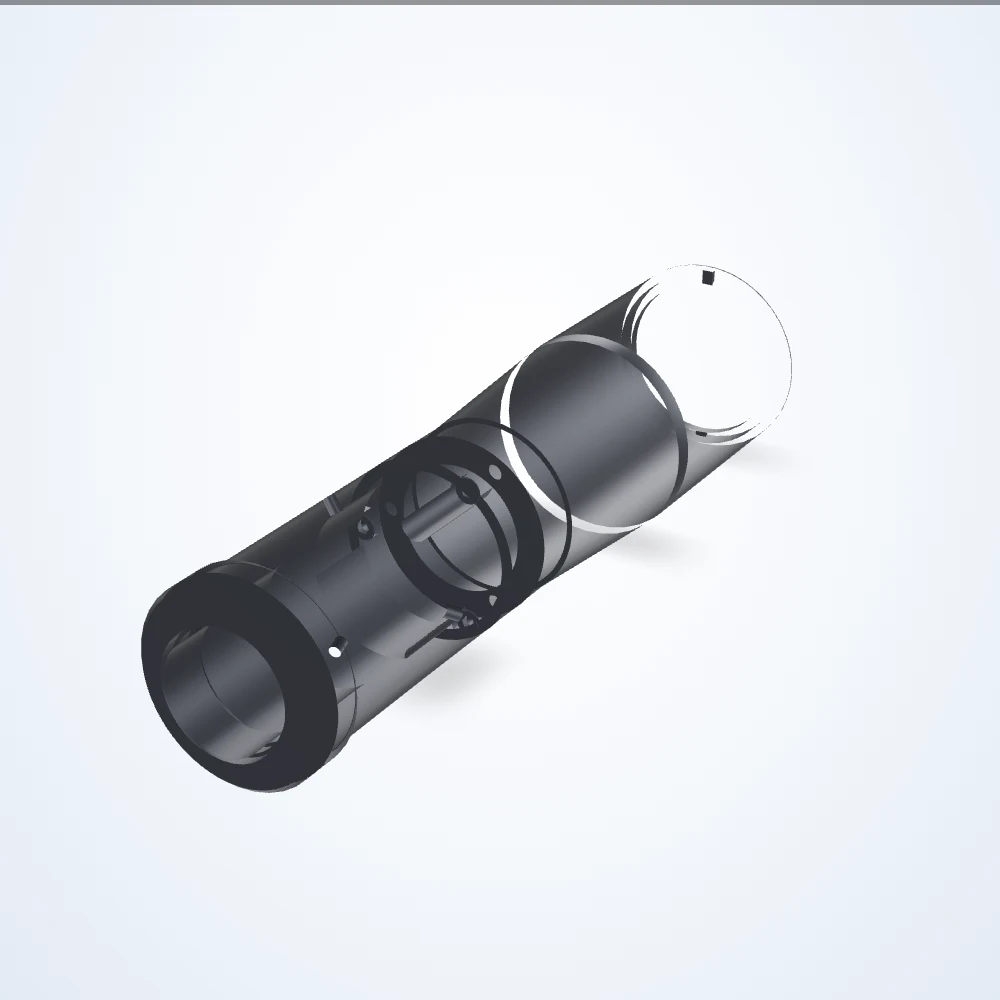

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.564× telecentric lens, 1.1", C-Mount (LS-TCL-0270)
Model LS-TCL-0270
0.564× telecentric lens, 1.1", C-Mount. Working distance 67.2 mm. Depth of field 1.8 mm.
Specifications
| Model | LS-TCL-0270 |
|---|---|
| Depth Of Field | 1.8 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.08 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 25.16 x 13.32 mm |
| Fov @ 1.1″ | 25.11 x 18.39 mm |
| Fov @ 1.2″ | 20.12 x 12.64 mm |
| Front Diameter | 44 mm |
| Image Circle Diameter | 17.6 mm |
| Imager Format | 1.1" |
| Lens Type | Telecentric |
| Magnification | 0.564× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 12 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.08° |
| Working Distance | 67.2 mm |
| Working ƒ/N | f/11 |
