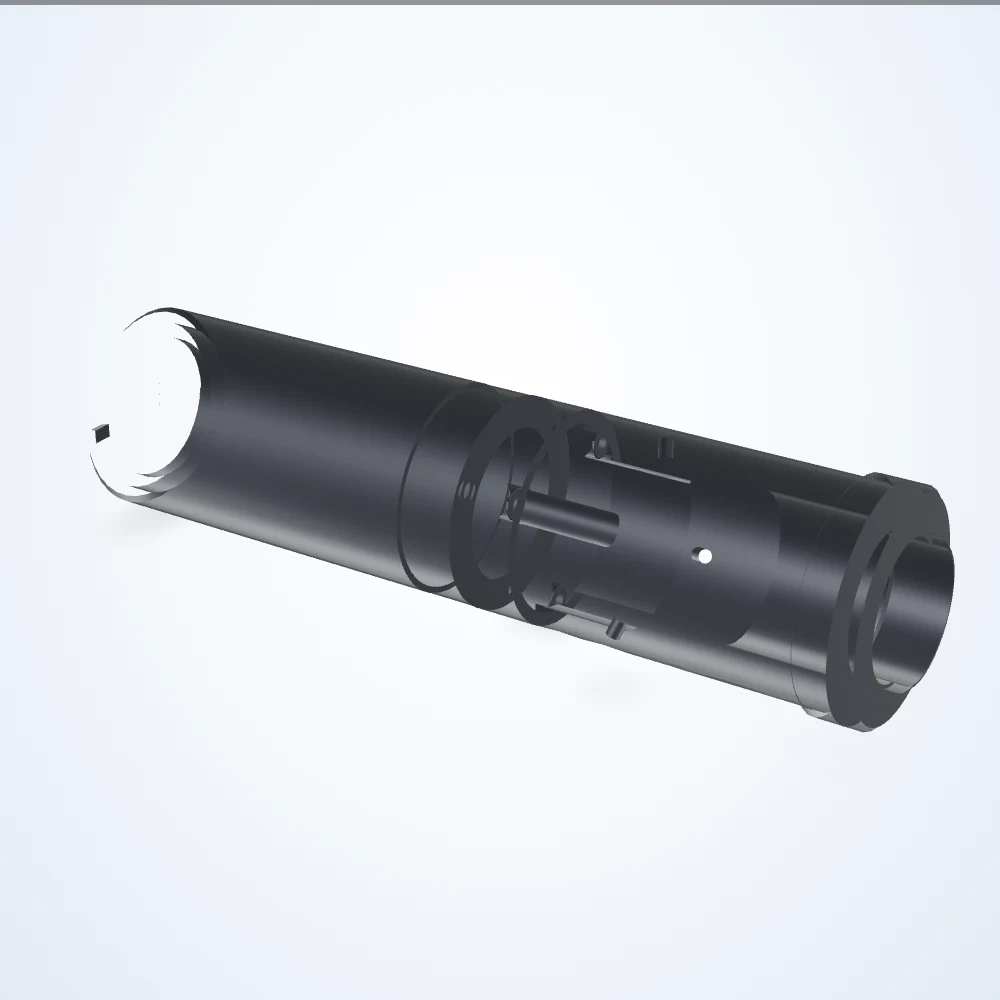

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.85× telecentric lens, 1.1", C-mount (LS-TCL-0269)
Model LS-TCL-0269
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 0.8 mm.
Specifications
| Model | LS-TCL-0269 |
|---|---|
| Magnification | 0.85× |
| Working distance | 43.1 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Depth of field | 0.8 mm |
| Dimensions approximate | 155.2 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 16.66 x 12.2 mm |
| Fov @ 1.2″ | 13.35 x 8.39 mm |
| Fov @ 1″ | 16.69 x 8.84 mm |
| Front diameter | 37.7 mm |
| Image circle | 17.6 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 8 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 342 Grams |
