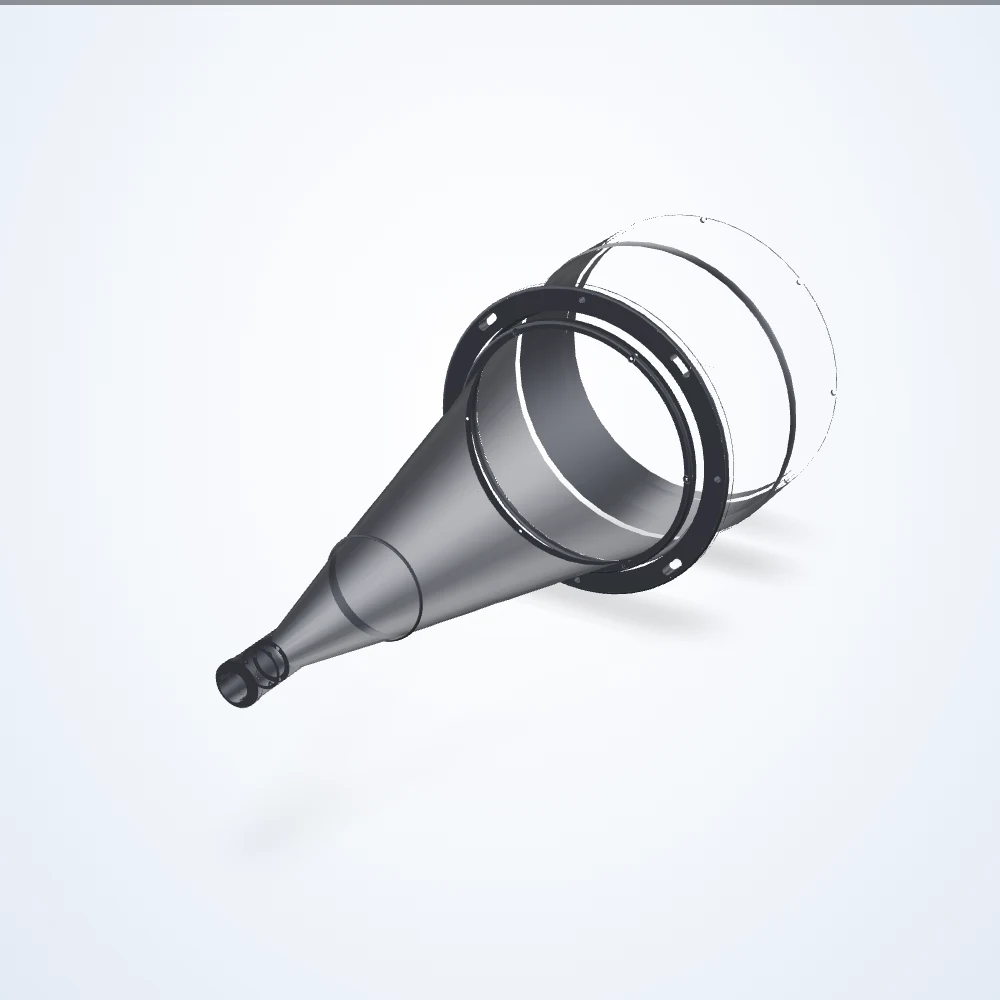

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.053× telecentric lens, 1", C-mount (LS-TCL-0268)
Model LS-TCL-0268
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 492.8 mm; depth of field 147.4 mm.
Specifications
| Model | LS-TCL-0268 |
|---|---|
| Magnification | 0.053× |
| Working distance | 492.8 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Depth of field | 147.4 mm |
| Dimensions approximate | 790.6 x 322 x 322 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 214.15 x 134.53 mm |
| Fov @ 1″ | 267.74 x 141.7 mm |
| Fov @ 2/3″ | 160.38 x 133.77 mm |
| Front diameter | 322 mm |
| Image circle | 16 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 96 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 18257 Grams |
