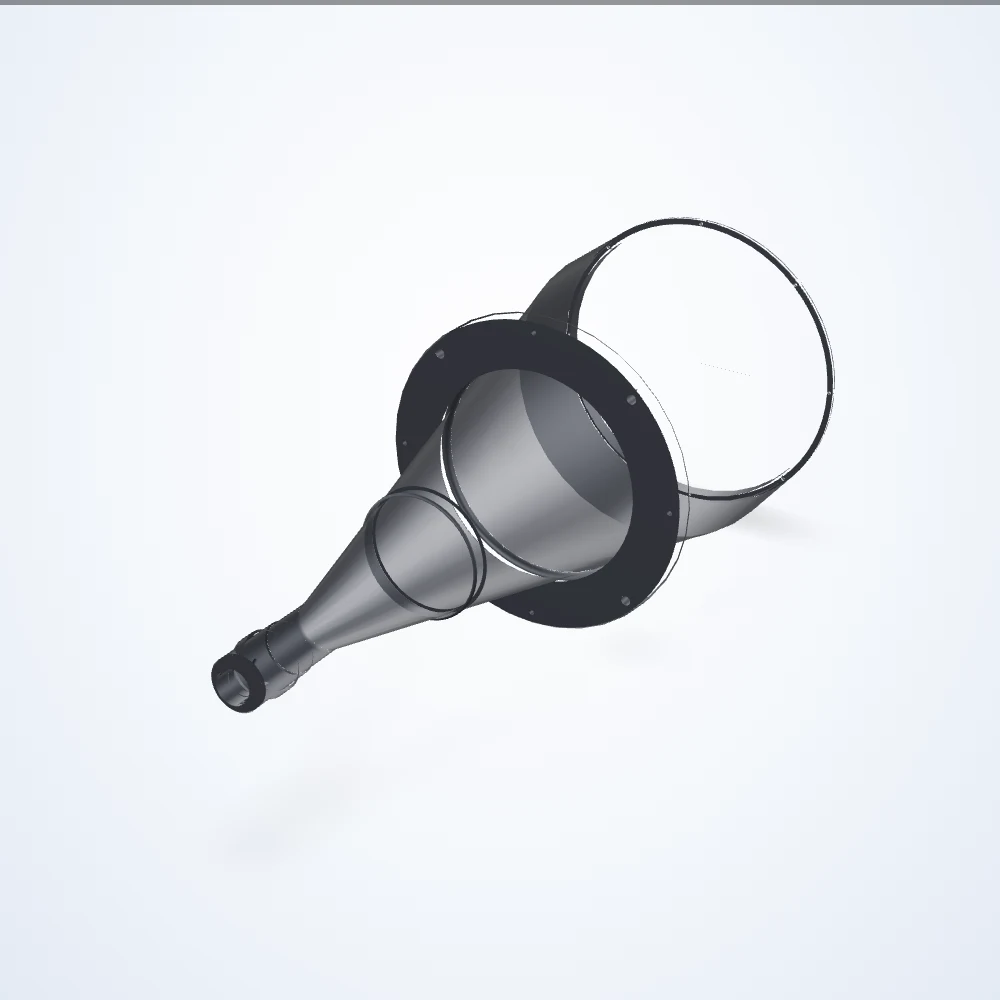

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.067× telecentric lens, 1", C-Mount (LS-TCL-0267)

Model LS-TCL-0267

0.067× telecentric lens, 1", C-Mount. Working distance 527.6 mm. Depth of field 92.2 mm.

Datasheet (PDF) - LS-TCL-0267 3D model (STEP) - LS-TCL-0267

Specifications

Model	LS-TCL-0267
Depth Of Field	92.2 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.04
Filter Thread	No Filter Threads
FoV @ 1″	211.79 x 112.09 mm
FoV @ 2/3″	126.87 x 105.82 mm
Fov @ 1.2″	169.40 x 106.42 mm
Front Diameter	260 mm
Image Circle Diameter	16 mm
Imager Format	1"
Lens Type	Telecentric
Magnification	0.067×
Mount	C-Mount
Resolution (Pixel Size)	76 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.05°
Working Distance	527.6 mm
Working ƒ/N	f/8
