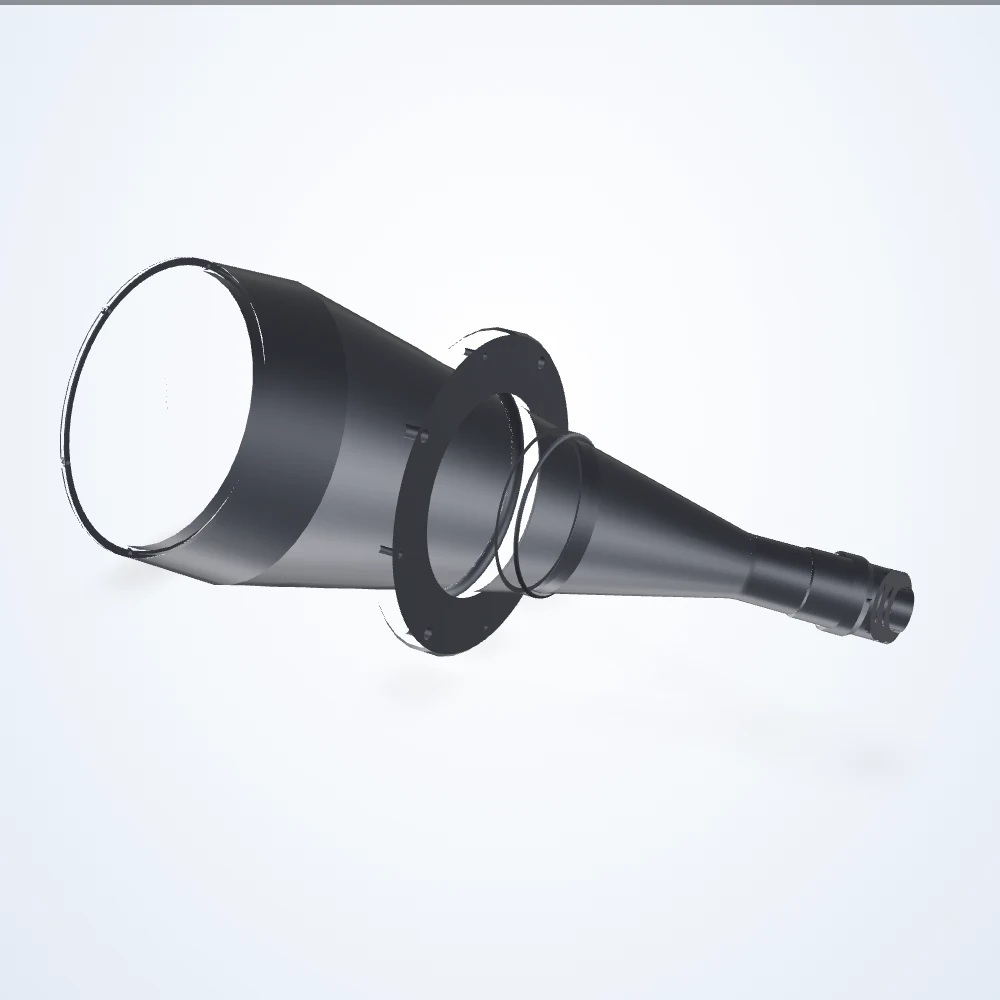

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.089× telecentric lens, 1", C-mount (LS-TCL-0266)
Model LS-TCL-0266
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 396 mm; depth of field 52.3 mm.
Specifications
| Model | LS-TCL-0266 |
|---|---|
| Magnification | 0.089× |
| Working distance | 396 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Depth of field | 52.3 mm |
| Dimensions approximate | 510.8 x 200 x 200 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 127.53 x 80.11 mm |
| Fov @ 1″ | 159.44 x 84.38 mm |
| Fov @ 2/3″ | 95.51 x 79.66 mm |
| Front diameter | 200 mm |
| Image circle | 16 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 57 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 5931 Grams |
