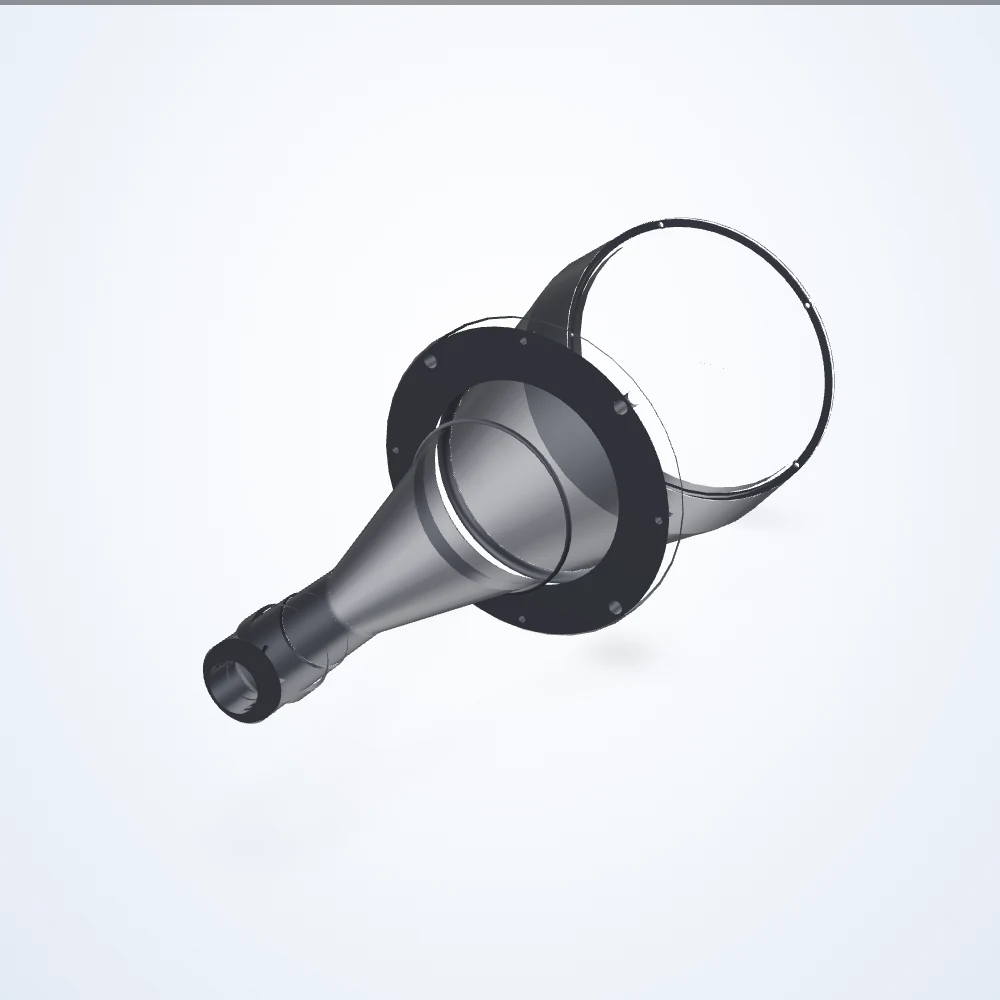

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.104× telecentric lens, 1", C-mount (LS-TCL-0265)
Model LS-TCL-0265
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 334.6 mm; depth of field 38.3 mm.
Specifications
| Model | LS-TCL-0265 |
|---|---|
| Magnification | 0.104× |
| Working distance | 334.6 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Depth of field | 38.3 mm |
| Dimensions approximate | 451.3 x 180 x 180 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.07 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 109.13 x 68.56 mm |
| Fov @ 1″ | 136.44 x 72.21 mm |
| Fov @ 2/3″ | 81.73 x 68.17 mm |
| Front diameter | 180 mm |
| Image circle | 16 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 49 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.07° |
| Working ƒ/n | f/8 |
| Weight | 4798 Grams |
