Home / Lenses / Telecentric lenses / 0.16× telecentric lens, 1", C-Mount

0.16× telecentric lens, 1", C-Mount (LS-TCL-0263)

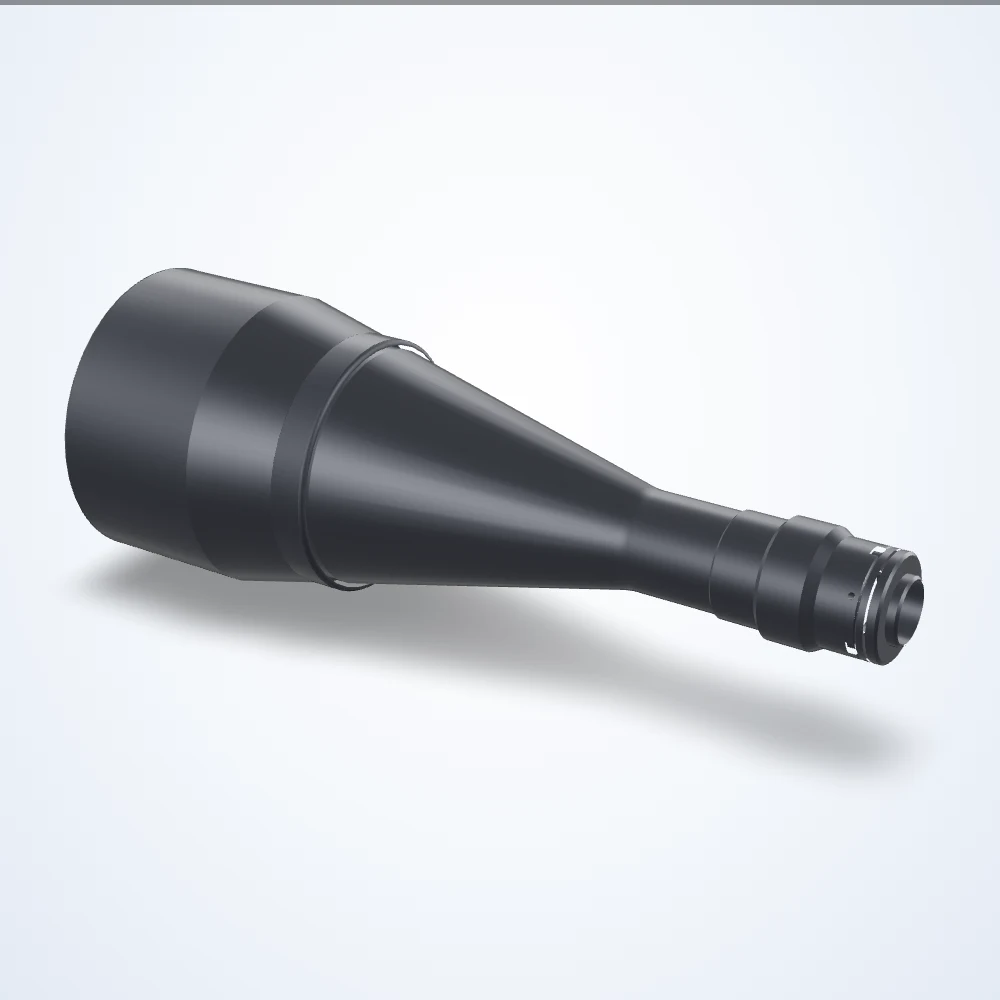

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.16× telecentric lens, 1", C-Mount (LS-TCL-0263)

Model LS-TCL-0263

0.16× telecentric lens, 1", C-Mount. Working distance 226.8 mm. Depth of field 16.2 mm.

Datasheet (PDF) - LS-TCL-0263 3D model (STEP) - LS-TCL-0263

Specifications

Model	LS-TCL-0263
Depth Of Field	16.2 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
FoV @ 1″	88.69 x 46.94 mm
FoV @ 2/3″	53.13 x 44.31 mm
Fov @ 1.2″	70.94 x 44.56 mm
Front Diameter	116 mm
Image Circle Diameter	16 mm
Imager Format	1"
Lens Type	Telecentric
Magnification	0.16×
Mount	C-Mount
Resolution (Pixel Size)	32 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.04°
Working Distance	226.8 mm
Working ƒ/N	f/8
