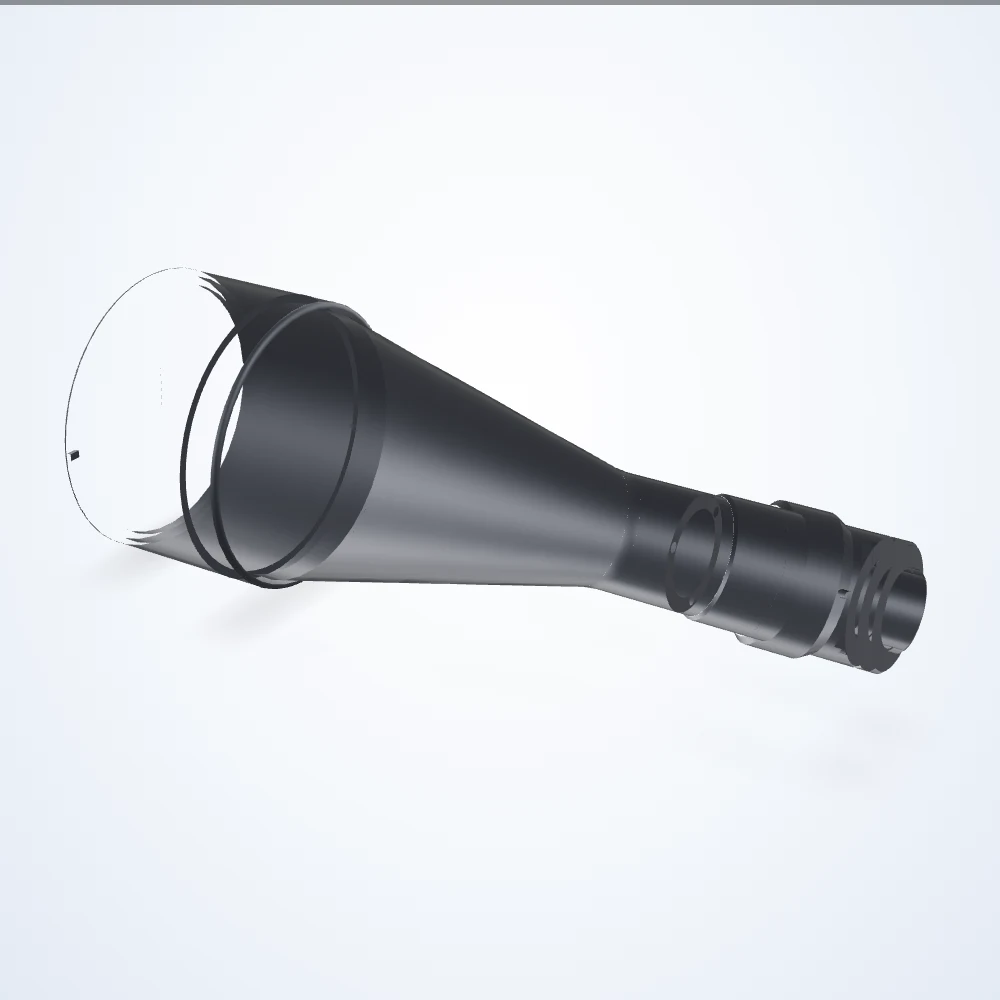

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.227× telecentric lens, 1", C-mount (LS-TCL-0262)
Model LS-TCL-0262
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.9 mm; depth of field 10.4 mm.
Specifications
| Model | LS-TCL-0262 |
|---|---|
| Magnification | 0.227× |
| Working distance | 181.9 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Depth of field | 10.4 mm |
| Dimensions approximate | 278.2 x 100 x 100 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 56.75 x 35.65 mm |
| Fov @ 1″ | 70.95 x 37.55 mm |
| Fov @ 2/3″ | 42.50 x 35.45 mm |
| Front diameter | 100 mm |
| Image circle | 16 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 25 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/8 |
| Weight | 1106 Grams |
