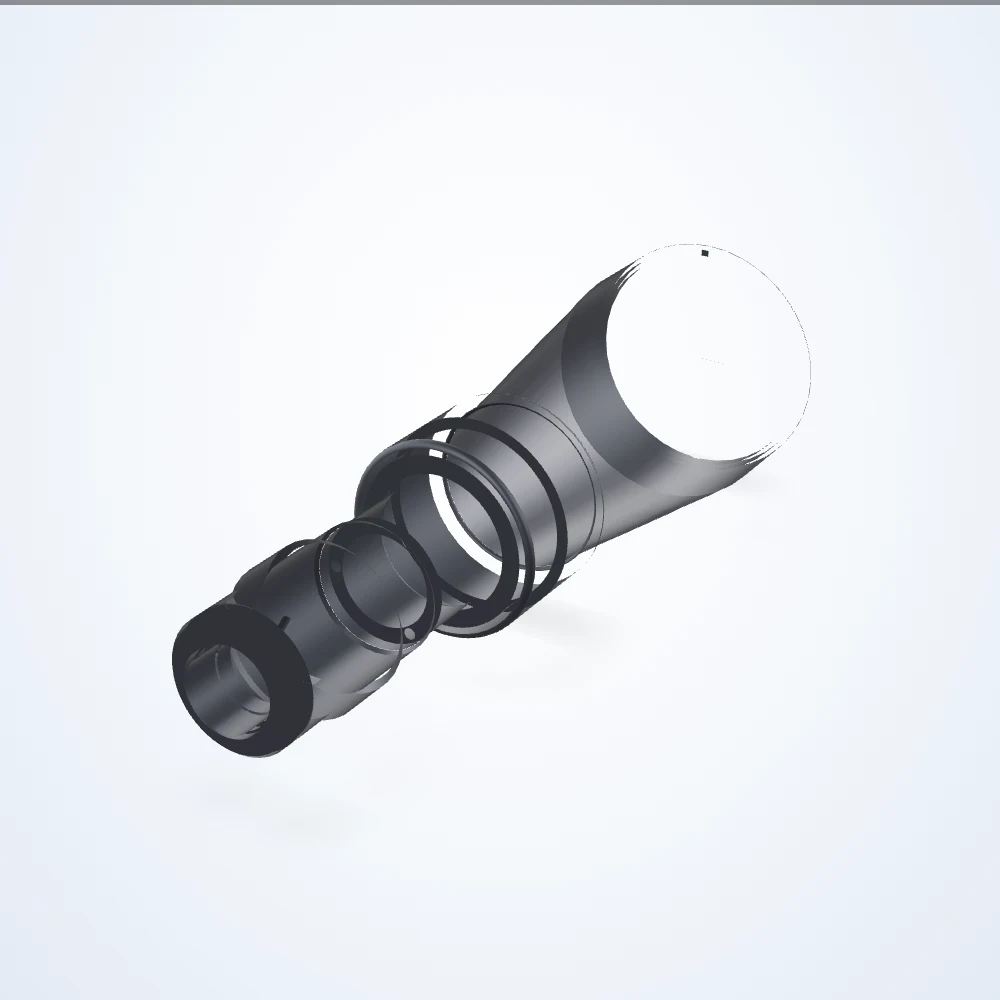

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.228× telecentric lens, 1", C-Mount (LS-TCL-0261)
Model LS-TCL-0261
0.228× telecentric lens, 1", C-Mount. Working distance 157.8 mm. Depth of field 8 mm.
Specifications
| Model | LS-TCL-0261 |
|---|---|
| Depth Of Field | 8 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.05 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 62.24 x 32.94 mm |
| FoV @ 2/3″ | 37.28 x 31.10 mm |
| Fov @ 1.2″ | 49.78 x 31.27 mm |
| Front Diameter | 80 mm |
| Image Circle Diameter | 16 mm |
| Imager Format | 1" |
| Lens Type | Telecentric |
| Magnification | 0.228× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 22 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.04° |
| Working Distance | 157.8 mm |
| Working ƒ/N | f/8 |
