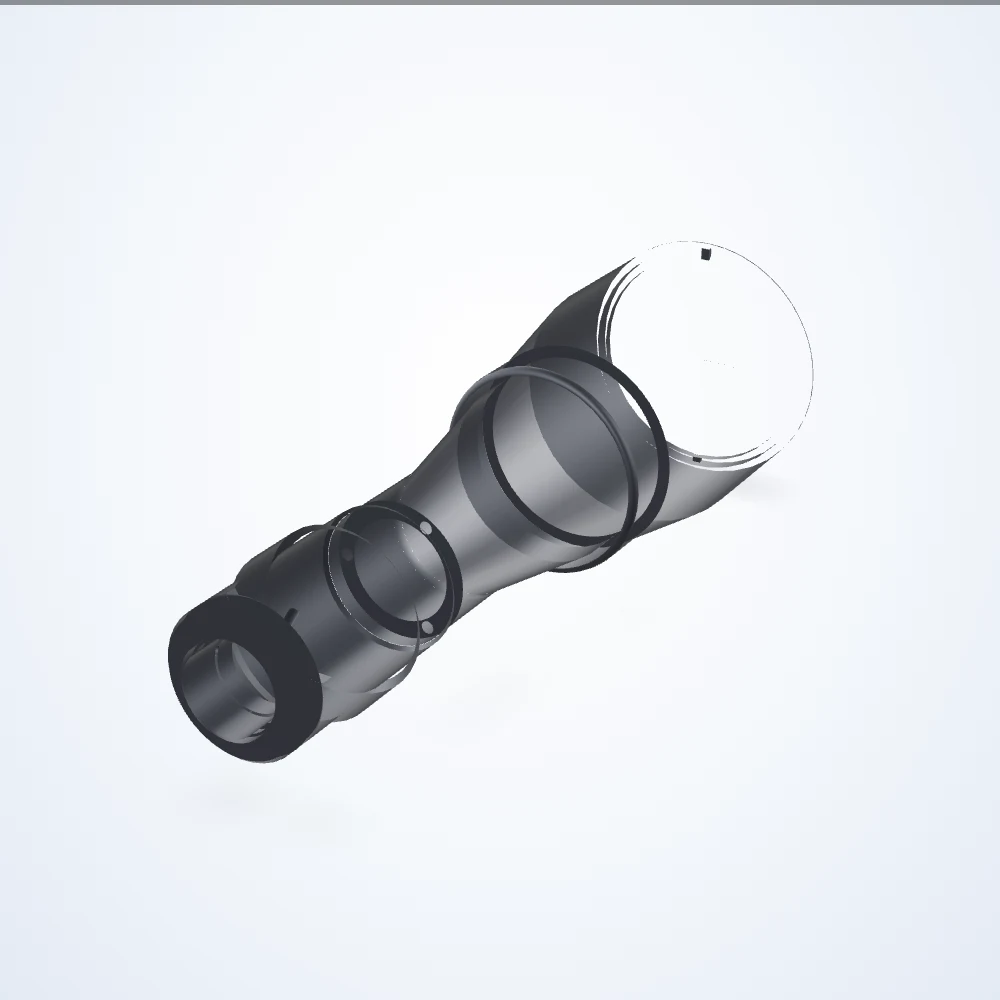

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.267× telecentric lens, 1", C-mount (LS-TCL-0260)
Model LS-TCL-0260
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm; depth of field 5.8 mm.
Specifications
| Model | LS-TCL-0260 |
|---|---|
| Magnification | 0.267× |
| Working distance | 132.9 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Depth of field | 5.8 mm |
| Dimensions approximate | 233.7 x 75 x 75 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 42.51 x 26.7 mm |
| Fov @ 1″ | 53.15 x 28.13 mm |
| Fov @ 2/3″ | 31.84 x 26.55 mm |
| Front diameter | 75 mm |
| Image circle | 16 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 19 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 779 Grams |
