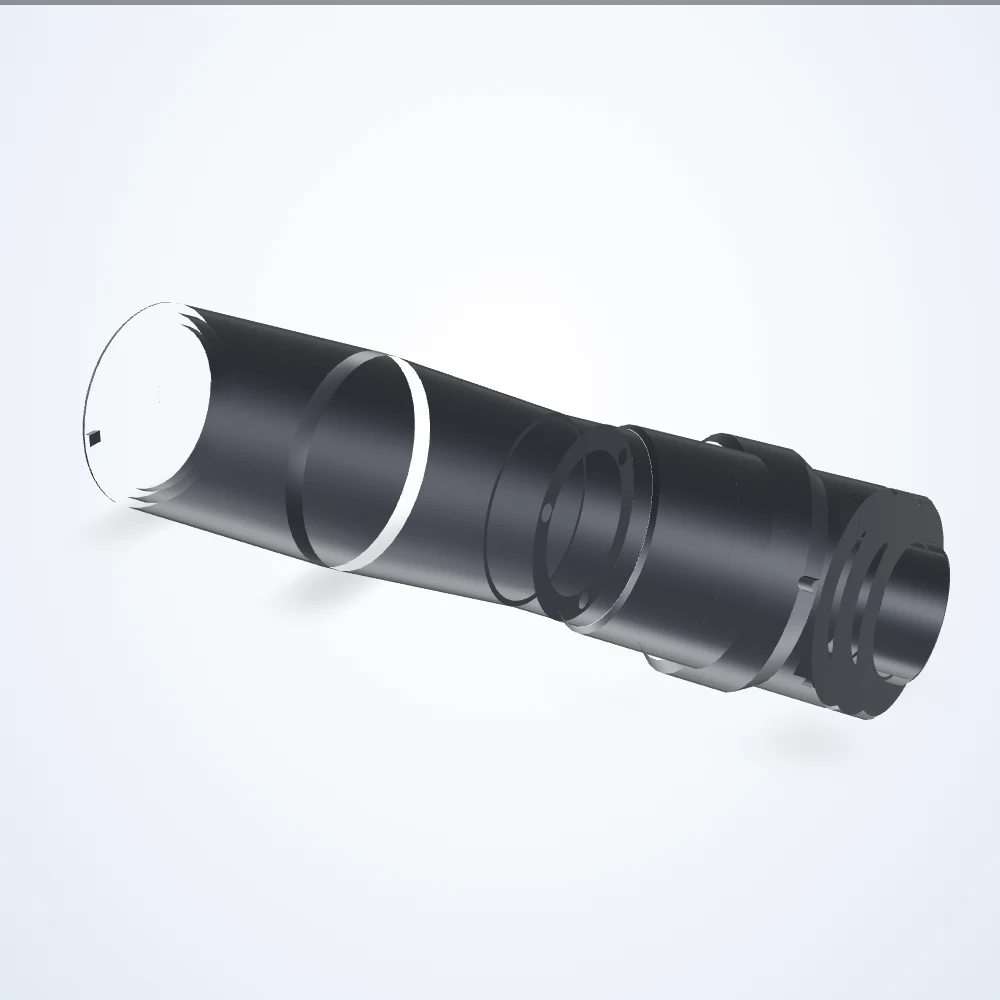

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.509× telecentric lens, 1", C-mount (LS-TCL-0258)
Model LS-TCL-0258
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 67.2 mm; depth of field 2.2 mm.
Specifications
| Model | LS-TCL-0258 |
|---|---|
| Magnification | 0.509× |
| Working distance | 67.2 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Depth of field | 2.2 mm |
| Dimensions approximate | 167.4 x 44 x 44 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 22.30 x 14.01 mm |
| Fov @ 1″ | 27.88 x 14.75 mm |
| Fov @ 2/3″ | 16.70 x 13.93 mm |
| Front diameter | 44 mm |
| Image circle | 16 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 14 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 466 Grams |
