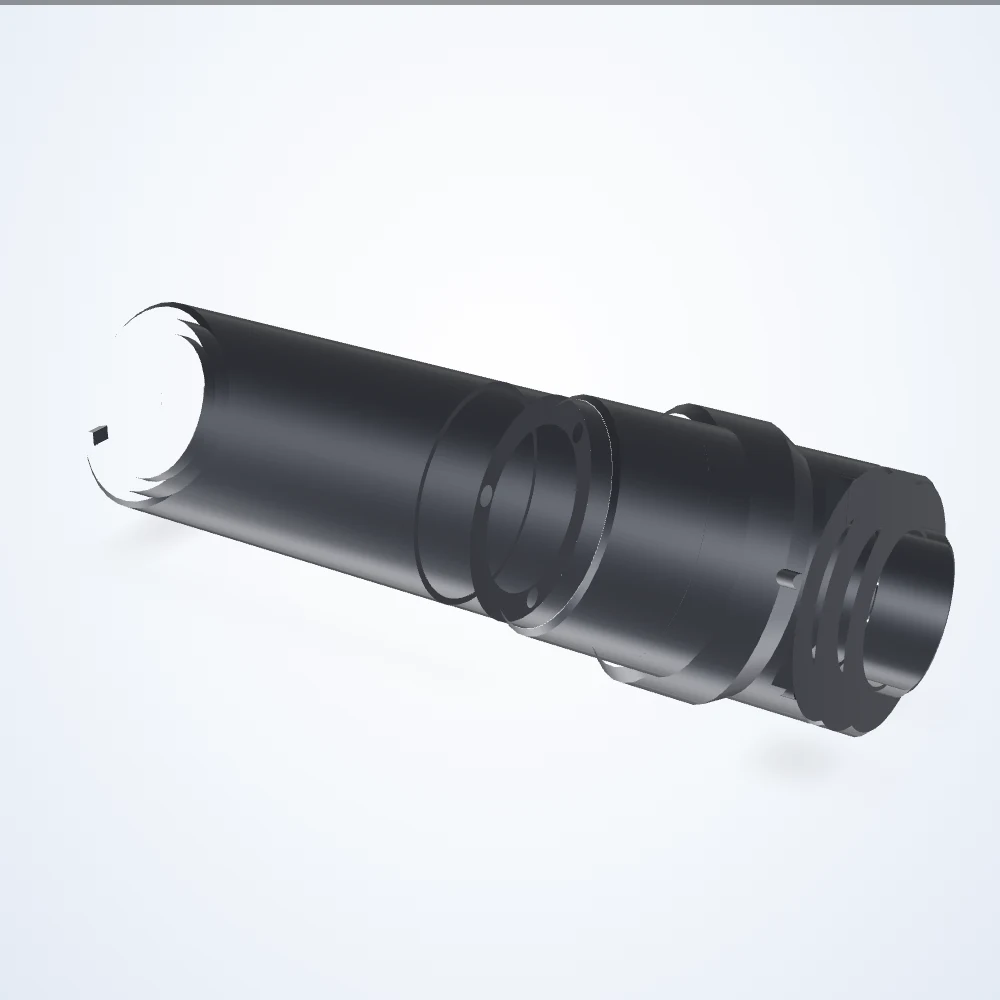

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.768× telecentric lens, 1", C-mount (LS-TCL-0257)
Model LS-TCL-0257
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 1.4 mm.
Specifications
| Model | LS-TCL-0257 |
|---|---|
| Magnification | 0.768× |
| Working distance | 43.1 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Depth of field | 1.4 mm |
| Dimensions approximate | 142.4 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 14.78 x 9.28 mm |
| Fov @ 1″ | 18.48 x 9.78 mm |
| Fov @ 2/3″ | 11.07 x 9.23 mm |
| Front diameter | 37.7 mm |
| Image circle | 16 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 13 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/16 |
| Weight | 378 Grams |
