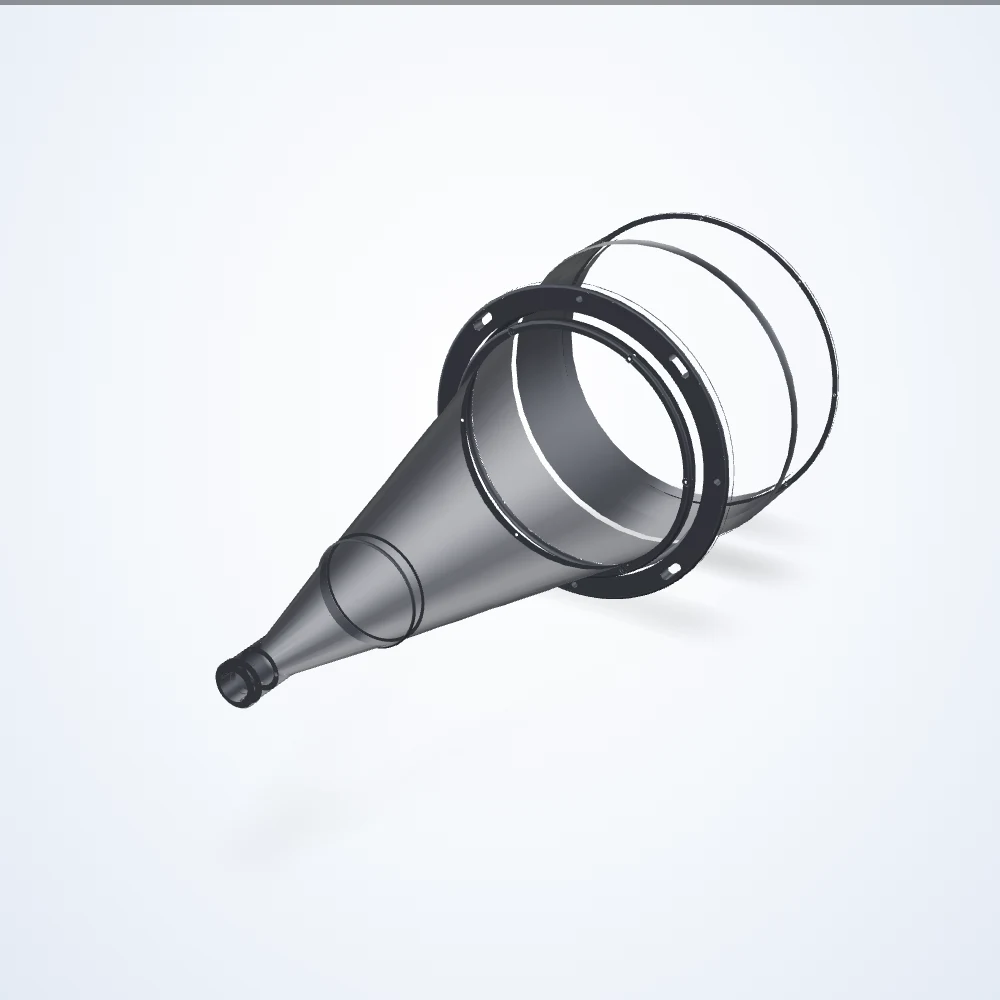

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.037× telecentric lens, 2/3", C-mount (LS-TCL-0256)
Model LS-TCL-0256
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 492.8 mm; depth of field 302.4 mm.
Specifications
| Model | LS-TCL-0256 |
|---|---|
| Magnification | 0.037× |
| Working distance | 492.8 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 302.4 mm |
| Dimensions approximate | 775.1 x 322 x 322 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 192.70 x 144.05 mm |
| Fov @ 1/2.0″ | 172.97 x 129.73 mm |
| Fov @ 1/2.5″ | 154.05 x 115.68 mm |
| Fov @ 1/2″ | 172.97 x 129.73 mm |
| Fov @ 1/3.0″ | 129.73 x 97.30 mm |
| Fov @ 2/3″ | 229.73 x 191.62 mm |
| Front diameter | 322 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 137 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/8 |
| Weight | 18241 Grams |
