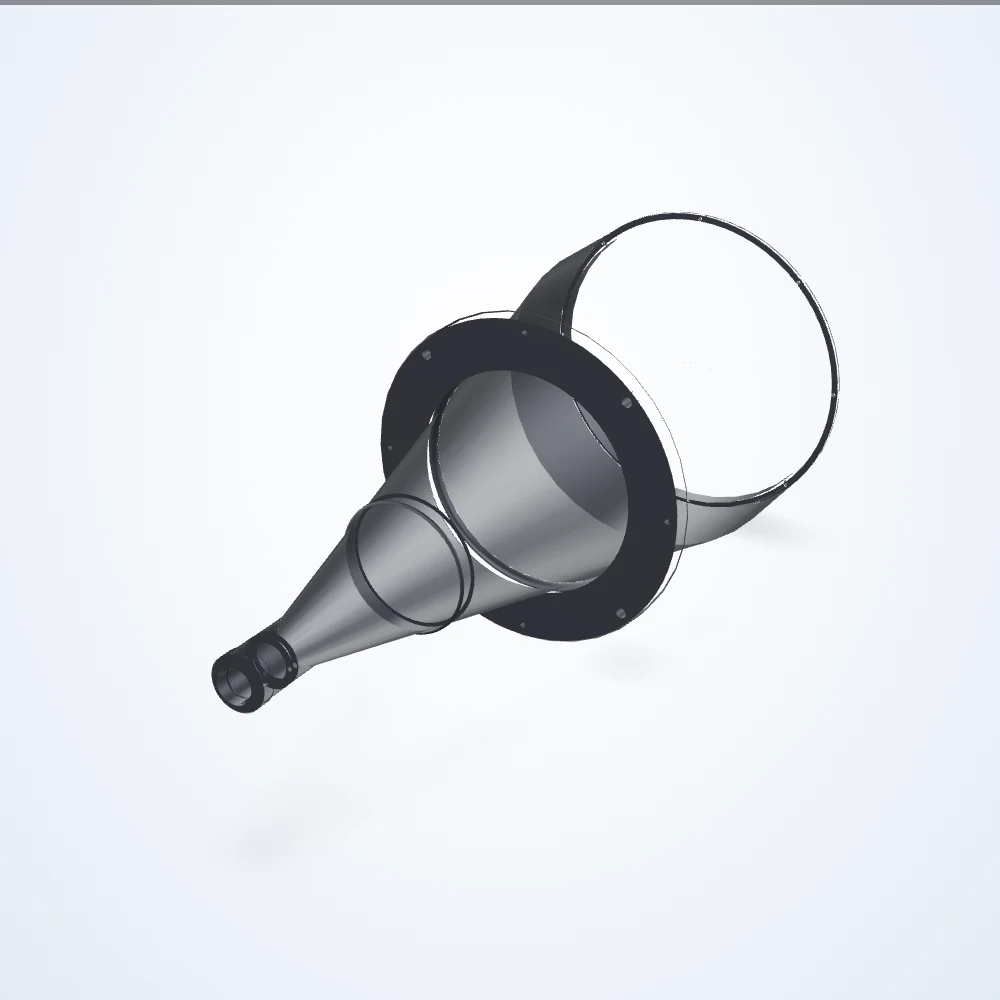

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.046× telecentric lens, 2/3", C-mount (LS-TCL-0254)
Model LS-TCL-0254
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 526.9 mm; depth of field 195.7 mm.
Specifications
| Model | LS-TCL-0254 |
|---|---|
| Magnification | 0.046× |
| Working distance | 526.9 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 195.7 mm |
| Dimensions approximate | 622.3 x 260 x 260 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 155 x 115.87 mm |
| Fov @ 1/2.0″ | 139.13 x 104.35 mm |
| Fov @ 1/2.5″ | 123.91 x 93.04 mm |
| Fov @ 1/2″ | 139.13 x 104.35 mm |
| Fov @ 1/3.0″ | 104.35 x 78.26 mm |
| Fov @ 2/3″ | 184.78 x 154.13 mm |
| Front diameter | 260 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 110 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/8 |
| Weight | 9902 Grams |
