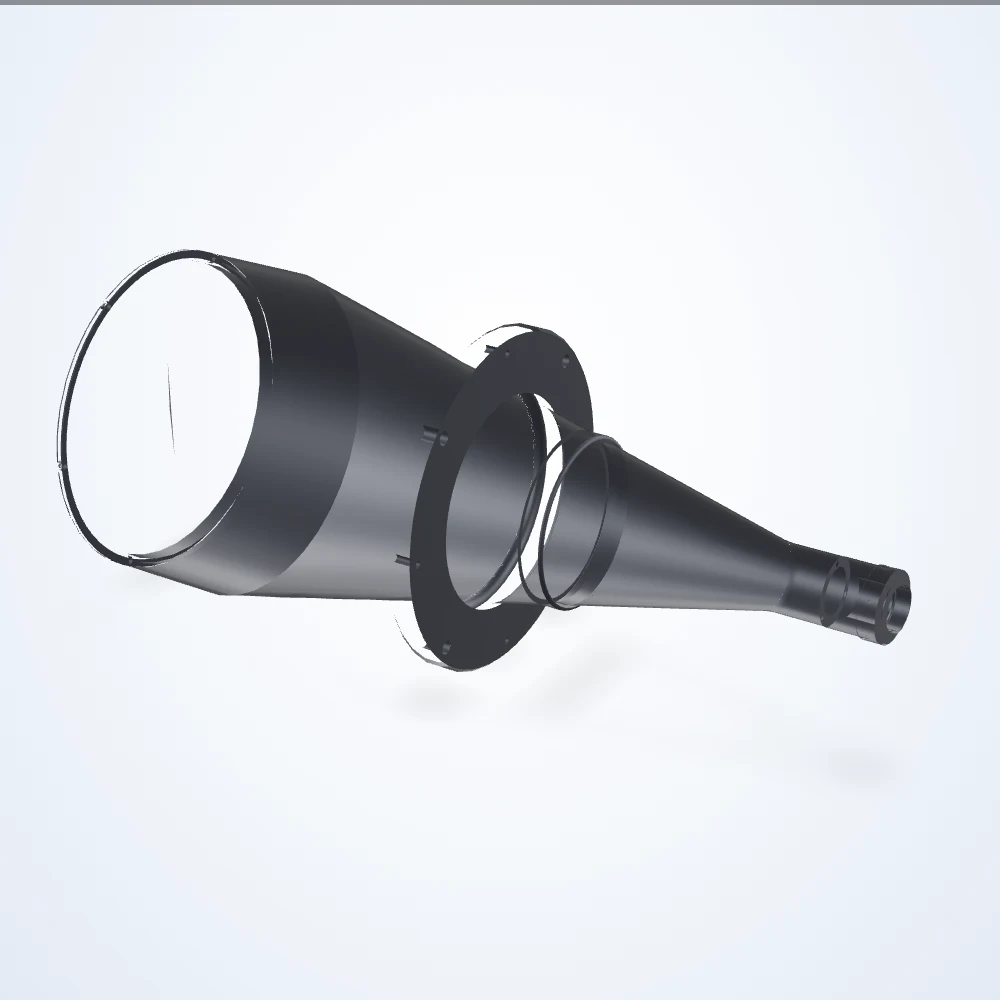

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.061× telecentric lens, 2/3", C-mount (LS-TCL-0252)
Model LS-TCL-0252
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 396 mm; depth of field 111.3 mm.
Specifications
| Model | LS-TCL-0252 |
|---|---|
| Magnification | 0.061× |
| Working distance | 396 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 111.3 mm |
| Dimensions approximate | 481.9 x 200 x 200 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 116.89 x 87.38 mm |
| Fov @ 1/2.0″ | 104.92 x 78.69 mm |
| Fov @ 1/2.5″ | 93.44 x 70.16 mm |
| Fov @ 1/2″ | 104.92 x 78.69 mm |
| Fov @ 1/3.0″ | 78.69 x 59.02 mm |
| Fov @ 2/3″ | 139.34 x 116.23 mm |
| Front diameter | 200 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 83 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 5853 Grams |
