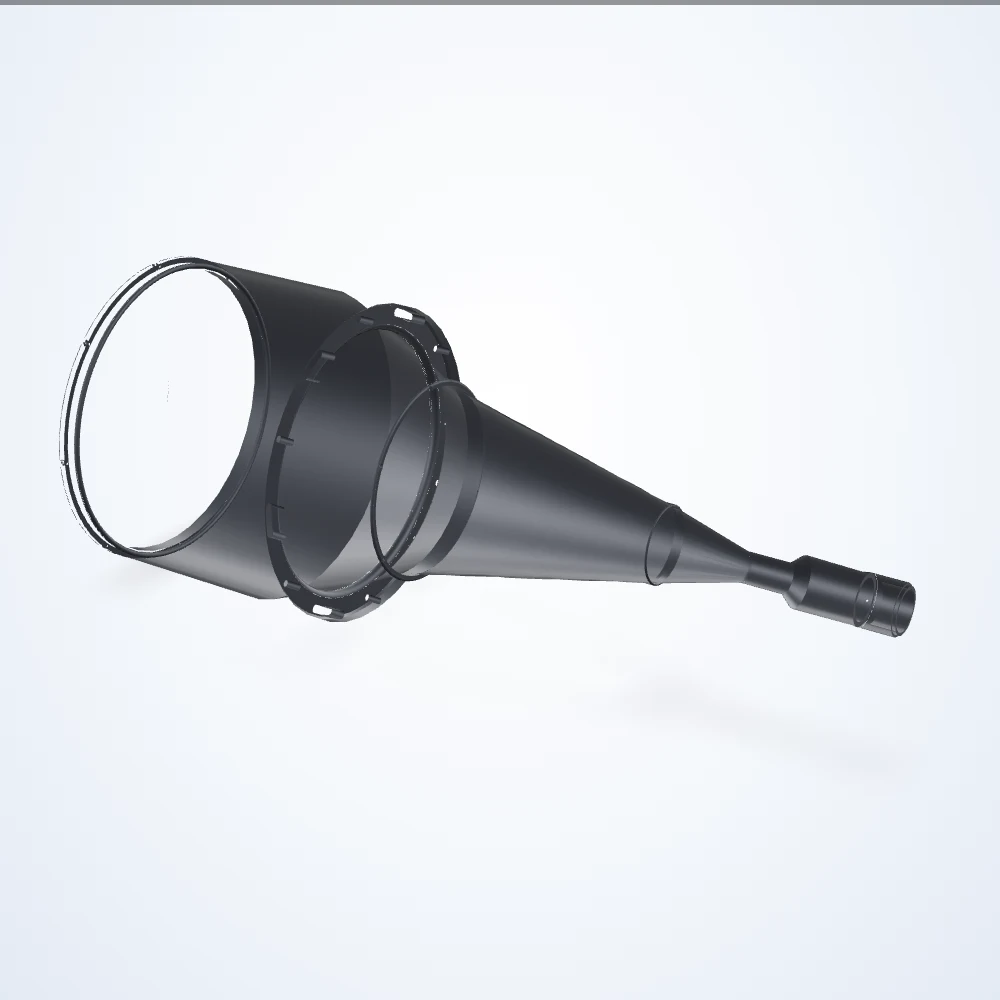

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.116× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0222)
Model LS-TCL-0222
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 500 mm; depth of field 49 mm.
Specifications
| Model | LS-TCL-0222 |
|---|---|
| Magnification | 0.116× |
| Working distance | 500 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 49 mm |
| Aps-c IMX342 | 192.76 x 144.57 mm |
| CHR70M | 267.24 x 189.58 mm |
| CMV50000 | 314.07 x 238.09 mm |
| Dimensions approximate | 1069.8 x 417 x 417 mm |
| Distortion maximum (%) | < 0.15 |
| Distortion typical (%) | < 0.1 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 310.34 x 206.9 mm |
| Front diameter | 417 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 351.72 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 44 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.15° |
| Telecentricity typical | < 0.1° |
| Working ƒ/n | f/8 |
| Weight | 38984 Grams |
