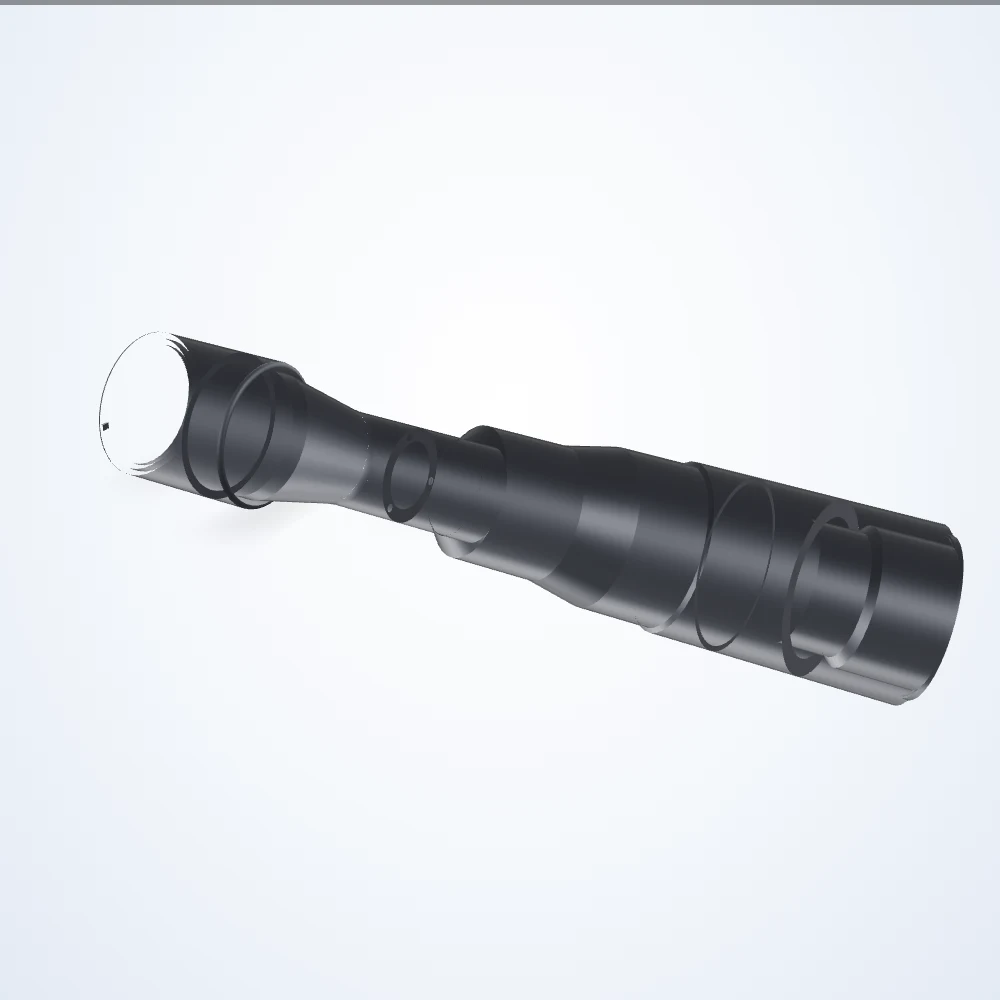

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0191)
Model LS-TCL-0191
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.6 mm; depth of field 1.3 mm.
Specifications
| Model | LS-TCL-0191 |
|---|---|
| Magnification | 1× |
| Working distance | 102.6 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 1.3 mm |
| Aps-c IMX342 | 22.36 x 16.77 mm |
| CHR70M | 31 x 21.99 mm |
| CMV50000 | 36.43 x 27.62 mm |
| Dimensions approximate | 342.5 x 61 x 61 mm |
| Distortion maximum (%) | < 0.03 |
| Distortion typical (%) | < 0.02 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 36 x 24 mm |
| Front diameter | 61 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 40.8 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 10 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.05° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/16 |
| Weight | 1381 Grams |
