Telecentric lenses

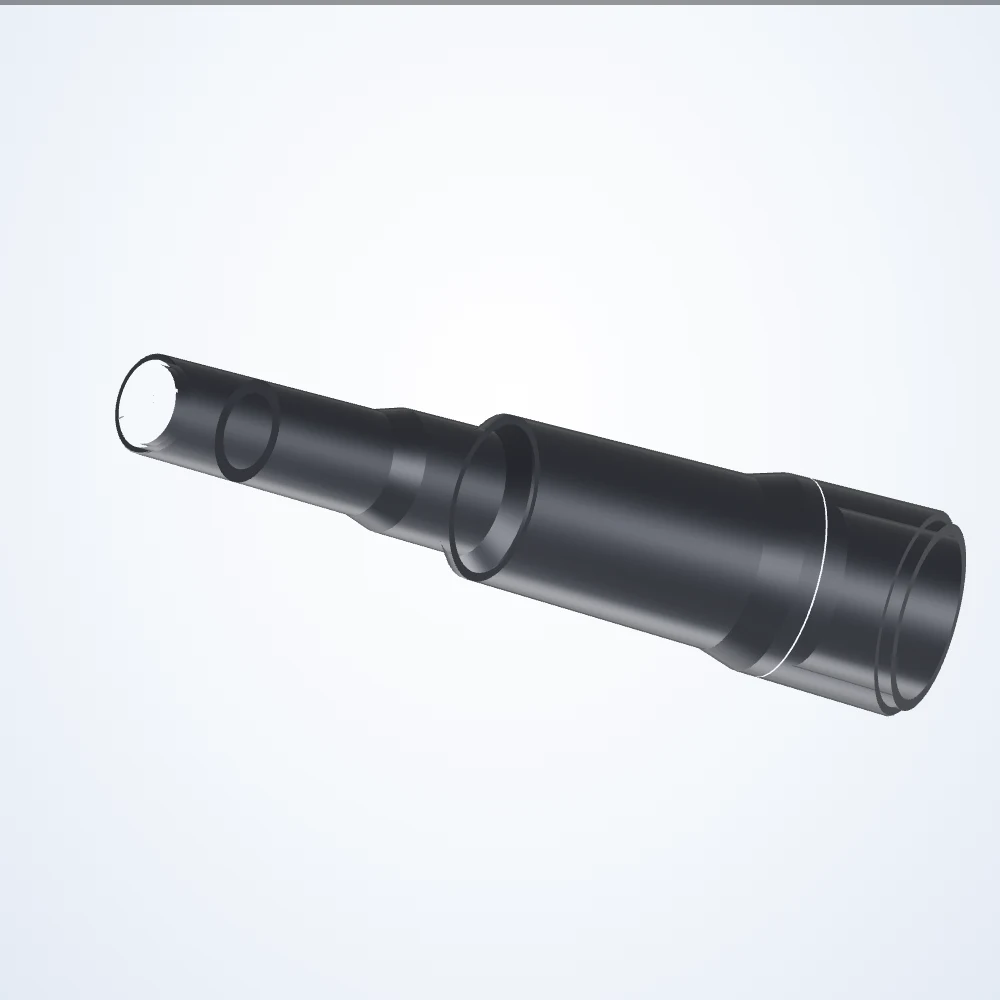

2× telecentric lens, 35mm Full Frame, M58-mount (LS-TCL-0189)
Model LS-TCL-0189
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 57.8 mm; depth of field 0.3 mm.
Specifications
| Model | LS-TCL-0189 |
|---|---|
| Magnification | 2× |
| Working distance | 57.8 mm |
| Sensor format | 35mm Full Frame |
| Mount | M58-Mount |
| Depth of field | 0.3 mm |
| Aps-c IMX342 | 11.18 x 8.39 mm |
| CHR70M | 15.5 x 11 mm |
| CMV50000 | 18.22 x 13.81 mm |
| Dimensions approximate | 299.5 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.05 |
| Distortion typical (%) | < 0.03 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 18 x 12 mm |
| Front diameter | 37.7 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 20.4 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 5 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.05° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/16 |
| Weight | 713 Grams |
