Home / Lenses / Telecentric lenses / 2× telecentric lens, 35mm Full Frame, M58-Mount

2× telecentric lens, 35mm Full Frame, M58-Mount (LS-TCL-0188)

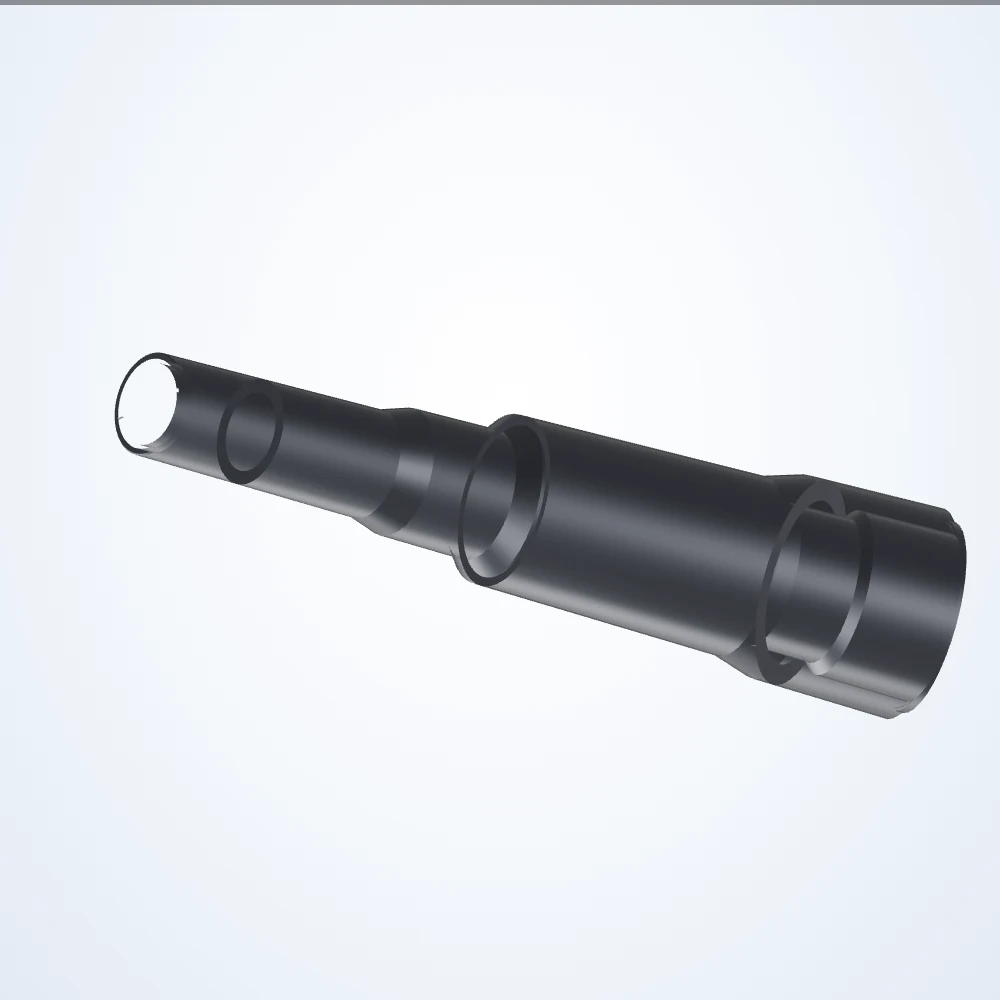

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

2× telecentric lens, 35mm Full Frame, M58-Mount (LS-TCL-0188)

Model LS-TCL-0188

2× telecentric lens, 35mm Full Frame, M58-Mount. Working distance 57.8 mm. Depth of field 0.3 mm.

Datasheet (PDF) - LS-TCL-0188 3D model (STEP) - LS-TCL-0188

Specifications

Model	LS-TCL-0188
APS-C IMX342	11.18 x 8.39 mm
CHR70M	15.5 x 11 mm
CMV50000	18.22 x 13.81 mm
Depth Of Field	0.3 mm
Distortion Maximum (%)	< 0.05
Distortion Typical (%)	< 0.03
Filter Thread	No Filter Threads
FoV @ Full Frame	18 x 12 mm
Front Diameter	37.7 mm
Image Circle Diameter	43.3 mm
Imager Format	35mm Full Frame
Lens Type	Telecentric
Line 8k-5µm	20.4 mm
Magnification	2×
Mount	M58-Mount
Resolution (Pixel Size)	5 μm
Telecentricity Maximum	0.05°
Telecentricity Typical	< 0.03°
Working Distance	57.8 mm
Working ƒ/N	f/16
