Home / Lenses / Telecentric lenses / 3× telecentric lens, 35mm Full Frame, M58-Mount

3× telecentric lens, 35mm Full Frame, M58-Mount (LS-TCL-0186)

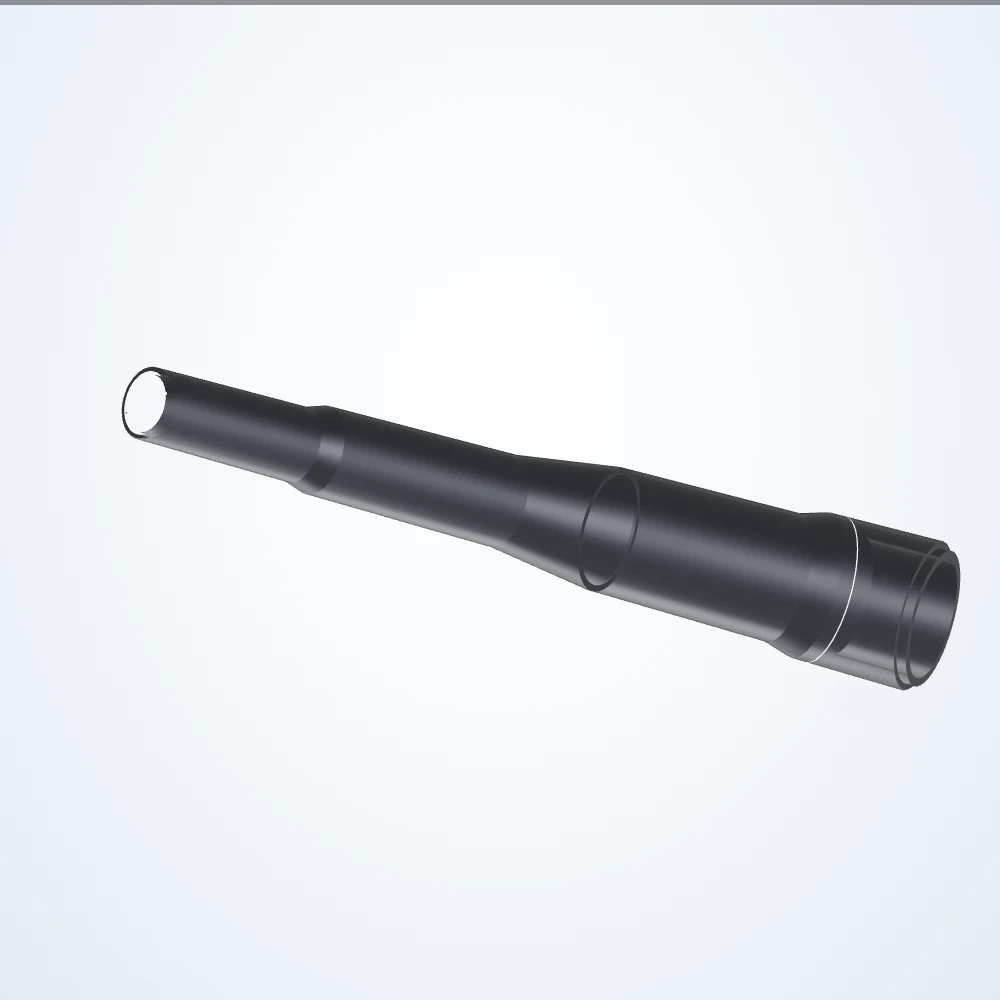

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

3× telecentric lens, 35mm Full Frame, M58-Mount (LS-TCL-0186)

Model LS-TCL-0186

3× telecentric lens, 35mm Full Frame, M58-Mount. Working distance 57.8 mm. Depth of field 0.2 mm.

Datasheet (PDF) - LS-TCL-0186 3D model (STEP) - LS-TCL-0186

Specifications

Model	LS-TCL-0186
APS-C IMX342	7.45 x 5.59 mm
CHR70M	10.33 x 7.33 mm
CMV50000	12.14 x 9.21 mm
Depth Of Field	0.2 mm
Distortion Maximum (%)	< 0.05
Distortion Typical (%)	< 0.03
Filter Thread	No Filter Threads
FoV @ Full Frame	12 x 8 mm
Front Diameter	37.7 mm
Image Circle Diameter	43.3 mm
Imager Format	35mm Full Frame
Lens Type	Telecentric
Line 8k-5µm	13.6 mm
Magnification	3×
Mount	M58-Mount
Resolution (Pixel Size)	4 μm
Telecentricity Maximum	0.05°
Telecentricity Typical	< 0.03°
Working Distance	57.8 mm
Working ƒ/N	f/18
