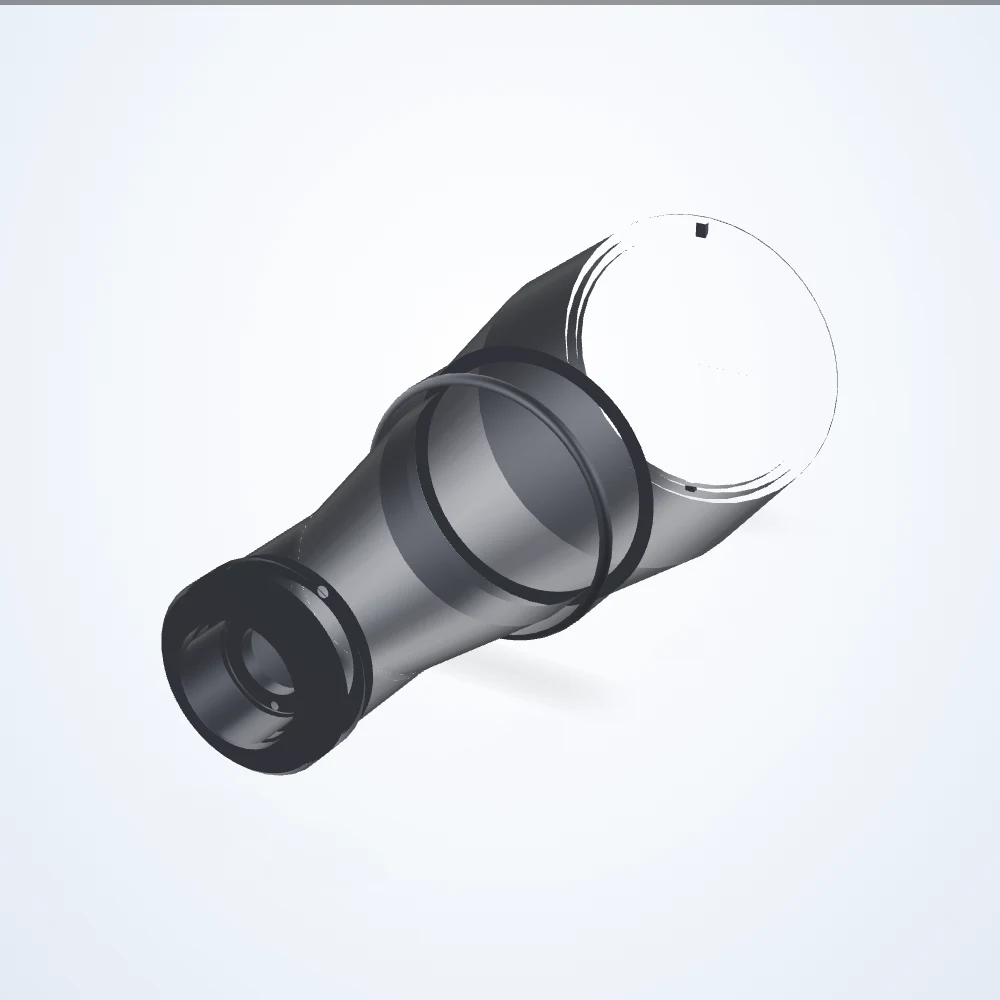

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.134× telecentric lens, 1/2", C-Mount (LS-TCL-0139)
Model LS-TCL-0139
0.134× telecentric lens, 1/2", C-Mount. Working distance 132.9 mm. Depth of field 23.1 mm.
Specifications
| Model | LS-TCL-0139 |
|---|---|
| Depth Of Field | 23.1 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.06 |
| Filter Thread | No Filter Threads |
| FoV @ 1/1.8″ | 53.21 x 39.78 mm |
| FoV @ 1/2.0″ | 47.76 x 35.82 mm |
| FoV @ 1/2.5″ | 42.54 x 31.94 mm |
| FoV @ 1/3.0″ | 35.82 x 26.87 mm |
| FoV @ 2/3″ | 52.9 mm ø |
| Front Diameter | 75 mm |
| Image Circle Diameter | 8 mm |
| Imager Format | 1/2" |
| Lens Type | Telecentric |
| Magnification | 0.134× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 38 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.07° |
| Working Distance | 132.9 mm |
| Working ƒ/N | f/8 |
