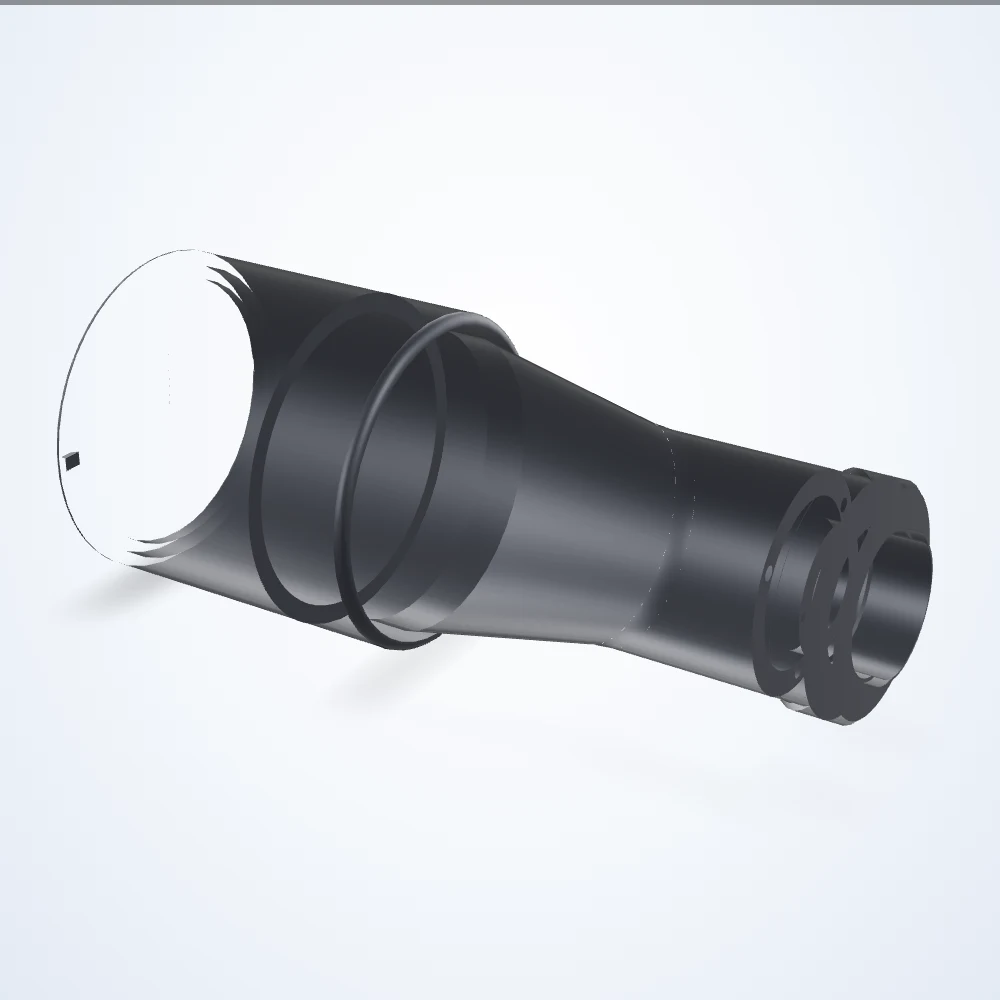

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.177× telecentric lens, 1/2", C-mount (LS-TCL-0138)
Model LS-TCL-0138
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.5 mm; depth of field 13.2 mm.
Specifications
| Model | LS-TCL-0138 |
|---|---|
| Magnification | 0.177× |
| Working distance | 102.5 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Depth of field | 13.2 mm |
| Dimensions approximate | 145.2 x 61 x 61 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 40.28 x 30.11 mm |
| Fov @ 1/2.0″ | 36.16 x 27.12 mm |
| Fov @ 1/2.5″ | 32.20 x 24.18 mm |
| Fov @ 1/2″ | 36.16 x 27.12 mm |
| Fov @ 1/3.0″ | 27.12 x 20.34 mm |
| Fov @ 2/3″ | 40 mm ø |
| Front diameter | 61 mm |
| Image circle | 8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 29 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/8 |
| Weight | 456 Grams |
