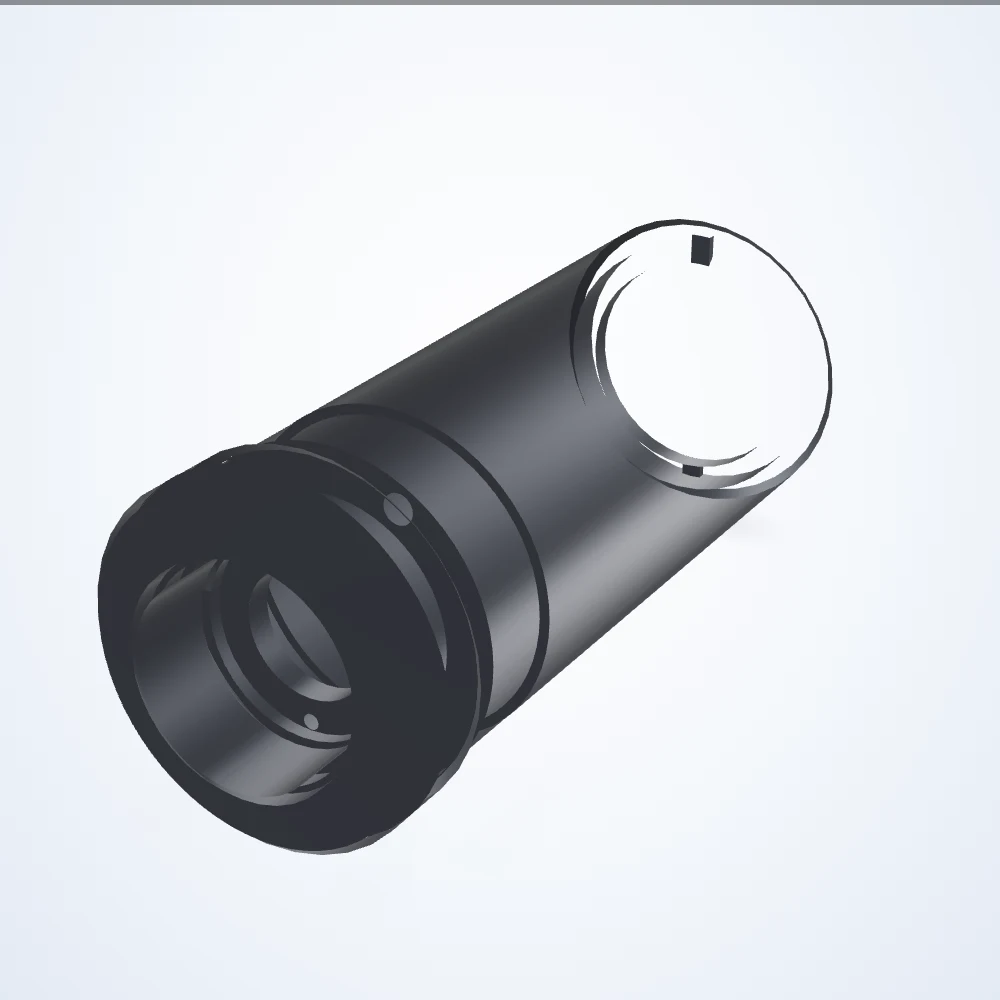

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.385× telecentric lens, 1/2", C-mount (LS-TCL-0136)
Model LS-TCL-0136
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 2.8 mm.
Specifications
| Model | LS-TCL-0136 |
|---|---|
| Magnification | 0.385× |
| Working distance | 43.1 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Depth of field | 2.8 mm |
| Dimensions approximate | 93 x 40 x 40 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 18.52 x 13.84 mm |
| Fov @ 1/2.0″ | 16.62 x 12.47 mm |
| Fov @ 1/2.5″ | 14.81 x 11.12 mm |
| Fov @ 1/2″ | 16.62 x 12.47 mm |
| Fov @ 1/3.0″ | 12.47 x 9.35 mm |
| Fov @ 2/3″ | 18.4 mm ø |
| Front diameter | 40 mm |
| Image circle | 8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 13 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/8 |
| Weight | 254 Grams |
