360° inspection lenses

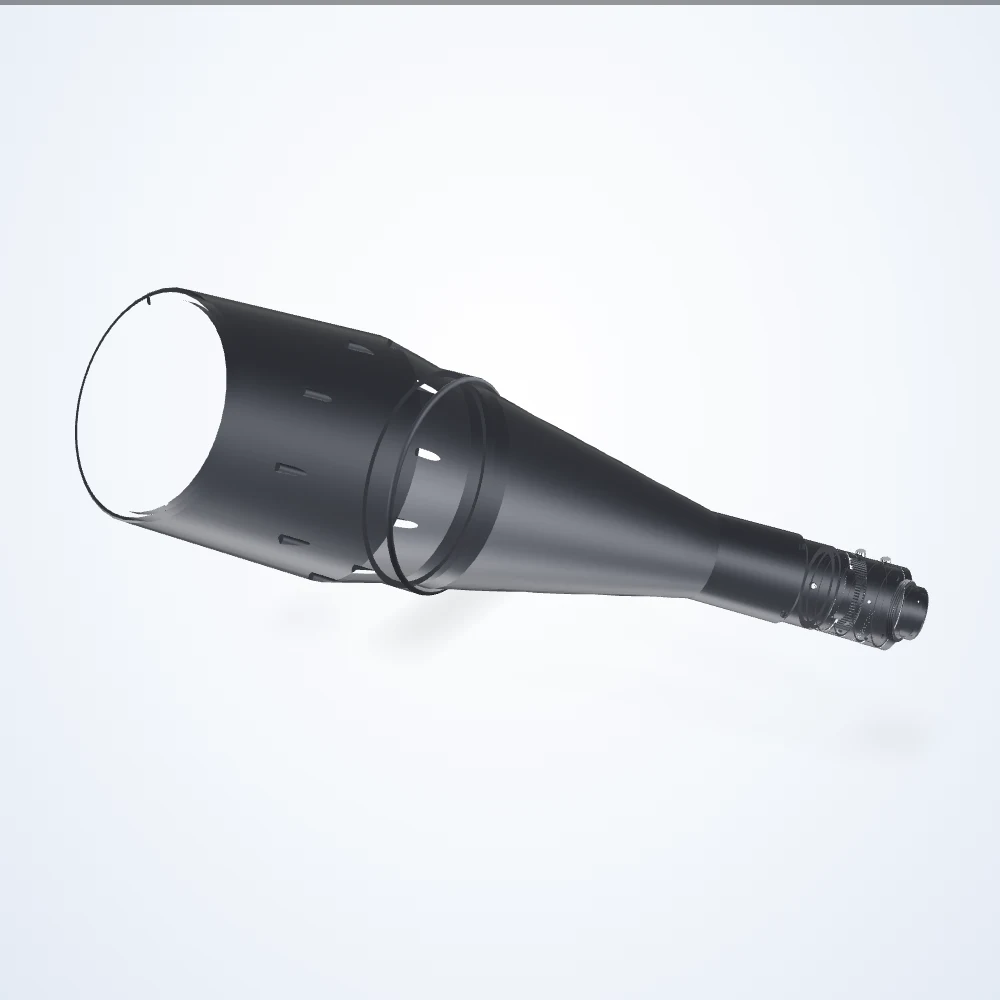

360° inspection lens, 2/3", C-mount (LS-TCL-0070)
Model LS-TCL-0070
Special inspection optics that image the sides or inner walls of a part in one shot.
Specifications
| Model | LS-TCL-0070 |
|---|---|
| Sensor format | 2/3" |
| Mount | C-Mount |
| Aov | 24 ° |
| Dimensions approximate | 116 x 381.1 x 381.1 mm |
| Filter thread | No Filter Threads |
| Fov @ 1/3″ | 15 mm Ø x 5 mm |
| Image circle | 6.6 mm |
| Lens type | Pericentric |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Working distance @ fov maximum | 20 mm |
| Working distance @ fov minimum | 80 mm |
| Working ƒ/n | f/16 |
| Weight | 2952 Grams |
