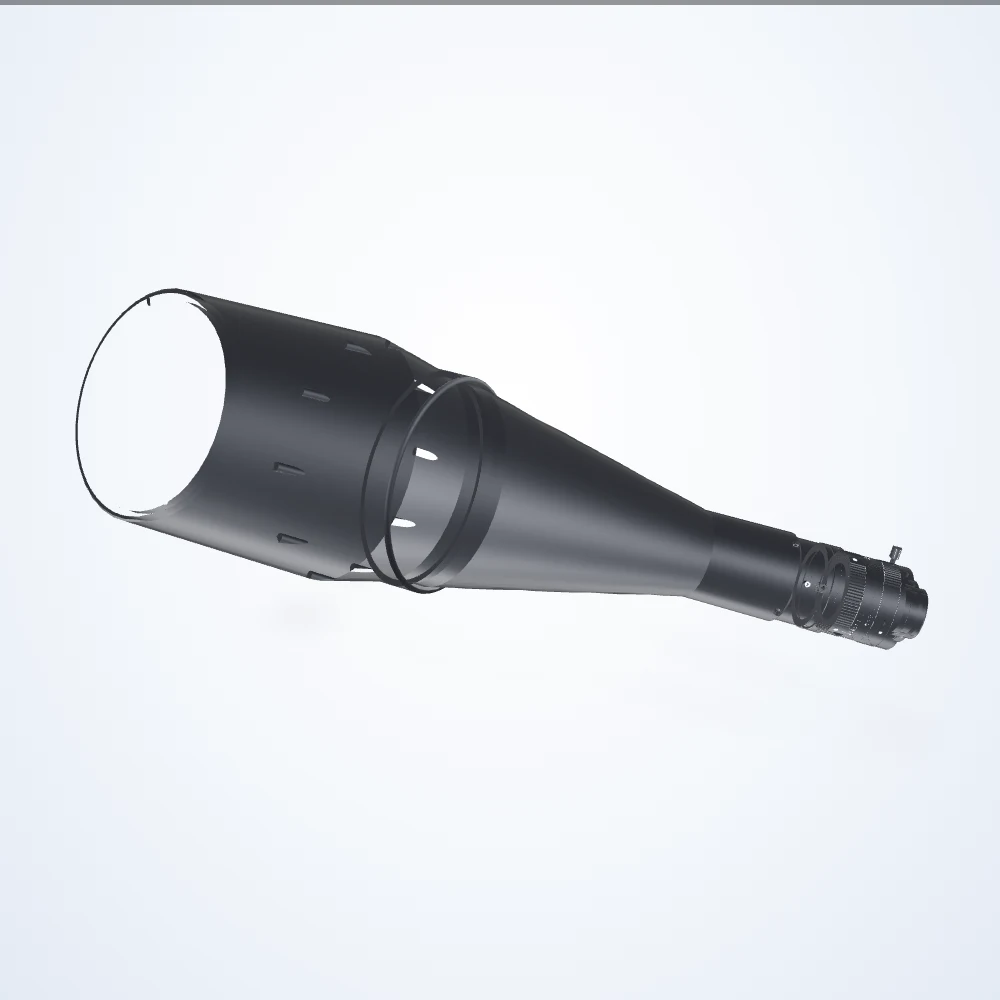

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° inspection lens, 1/3", C-mount (LS-TCL-0069)
Model LS-TCL-0069
Special inspection optics that image the sides or inner walls of a part in one shot.
Specifications
| Model | LS-TCL-0069 |
|---|---|
| Sensor format | 1/3" |
| Mount | C-Mount |
| Aov | 24 ° |
| Dimensions approximate | 116 x 385.3 x 385.3 mm |
| Filter thread | No Filter Threads |
| Fov @ 1/3″ | 7.5 mm Ø x 5 mm |
| Image circle | 3.6 mm |
| Lens type | Pericentric |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Working distance @ fov maximum | 20 mm |
| Working distance @ fov minimum | 85 mm |
| Working ƒ/n | f/8 |
| Weight | 2955 Grams |
