Home / Lenses / 360° inspection lenses / 360° inspection lens, 1/3", C-Mount

360° inspection lens, 1/3", C-Mount (LS-TCL-0068)

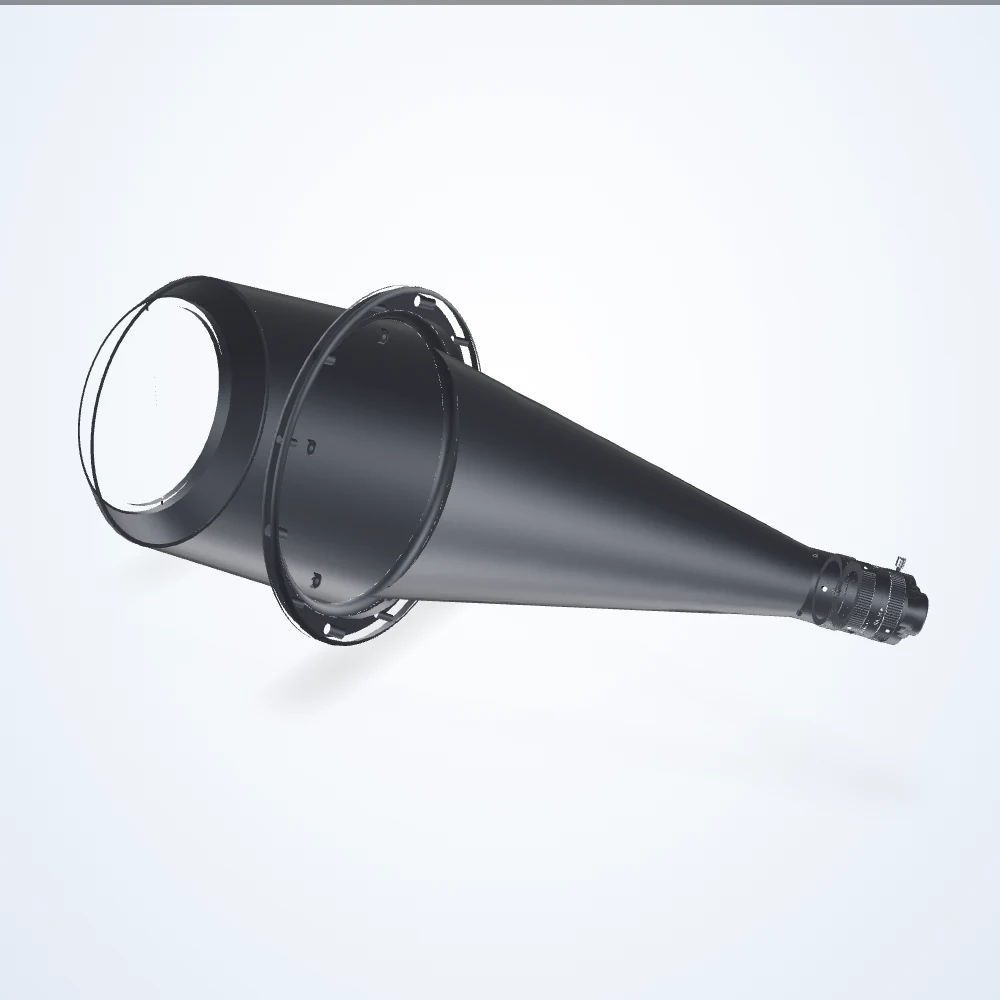

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/3", C-Mount (LS-TCL-0068)

Model LS-TCL-0068

360° inspection lens, 1/3", C-Mount.

Datasheet (PDF) - LS-TCL-0068 3D model (STEP) - LS-TCL-0068

Specifications

Model	LS-TCL-0068
Filter Thread	No Filter Threads
Image Circle Diameter	3.6 mm
Imager Format	1/3"
Lens Type	Pericentric
Mount	C-Mount
Working ƒ/N	f/16
