Home / Lenses / 360° inspection lenses / 360° inspection lens, 1/2", C-Mount

360° inspection lens, 1/2", C-Mount (LS-TCL-0057)

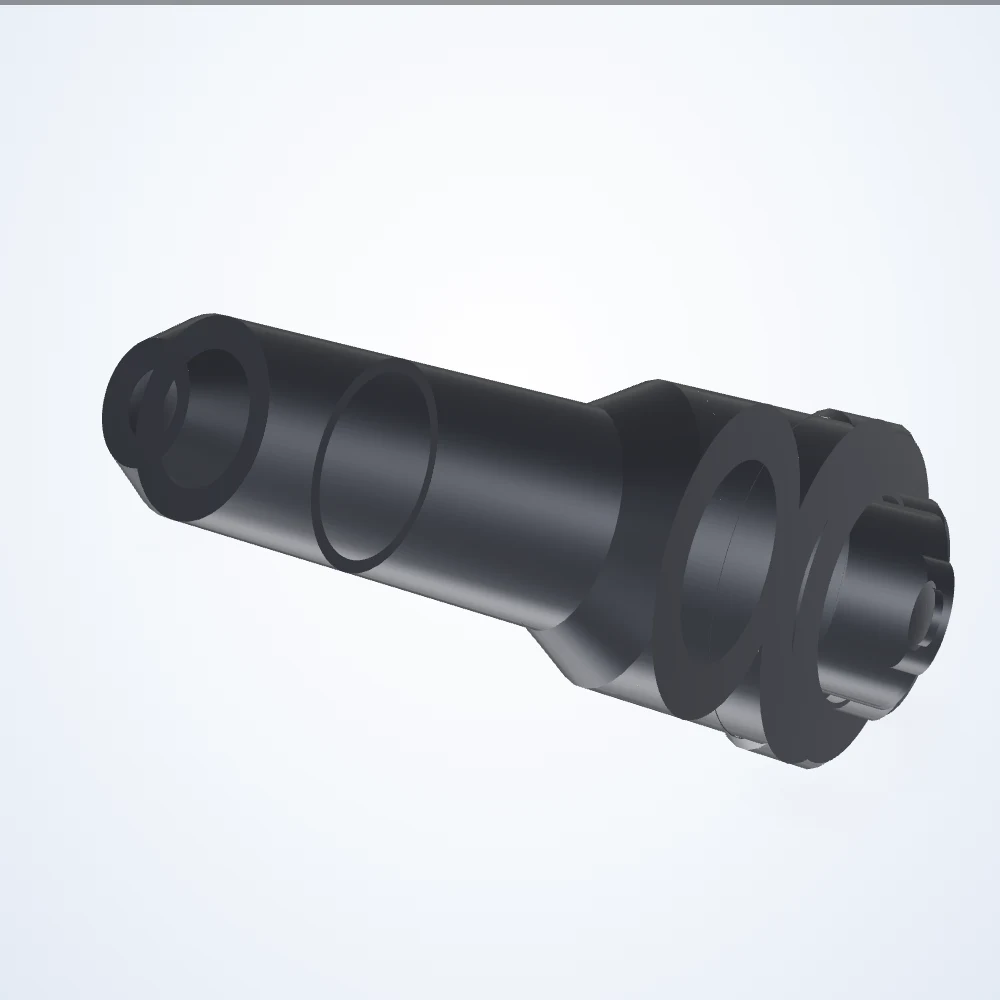

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/2", C-Mount (LS-TCL-0057)

Model LS-TCL-0057

360° inspection lens, 1/2", C-Mount.

Datasheet (PDF) - LS-TCL-0057 3D model (STEP) - LS-TCL-0057

Specifications

Model	LS-TCL-0057
Filter Thread	No Filter Threads
Focus Control	Manual with Lockring
Image Circle Diameter	4.8 mm
Imager Format	1/2"
Lens Type	Hole Inspection
Mount	C-Mount
Working ƒ/N	f/6

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
