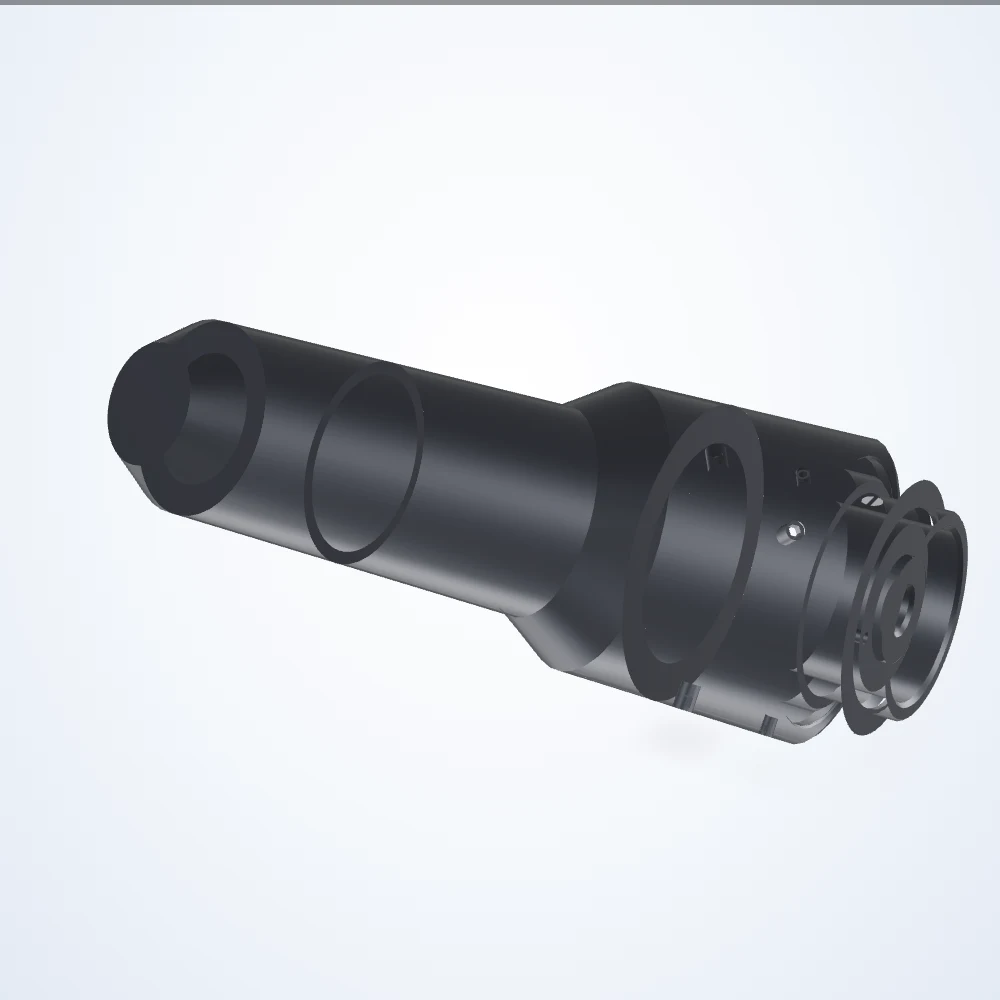

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° inspection lens, 2/3", C-mount (LS-TCL-0054)
Model LS-TCL-0054
Special inspection optics that image the sides or inner walls of a part in one shot.
Specifications
| Model | LS-TCL-0054 |
|---|---|
| Sensor format | 2/3" |
| Mount | C-Mount |
| Aov | 82 ° |
| Dimensions approximate | 37.7 x 113.7 x 113.7 mm |
| Filter thread | No Filter Threads |
| Focus control | Manual with Gear |
| Fov maximum | 120 |
| Fov minimum | 10 |
| Image circle | 6.6 mm |
| Installation location | Indoor Use Only |
| Lens type | Hole Inspection |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Working distance @ fov maximum | 67 mm |
| Working distance @ fov minimum | 10 mm |
| Working ƒ/n | f/8 |
| Weight | 214 Grams |
