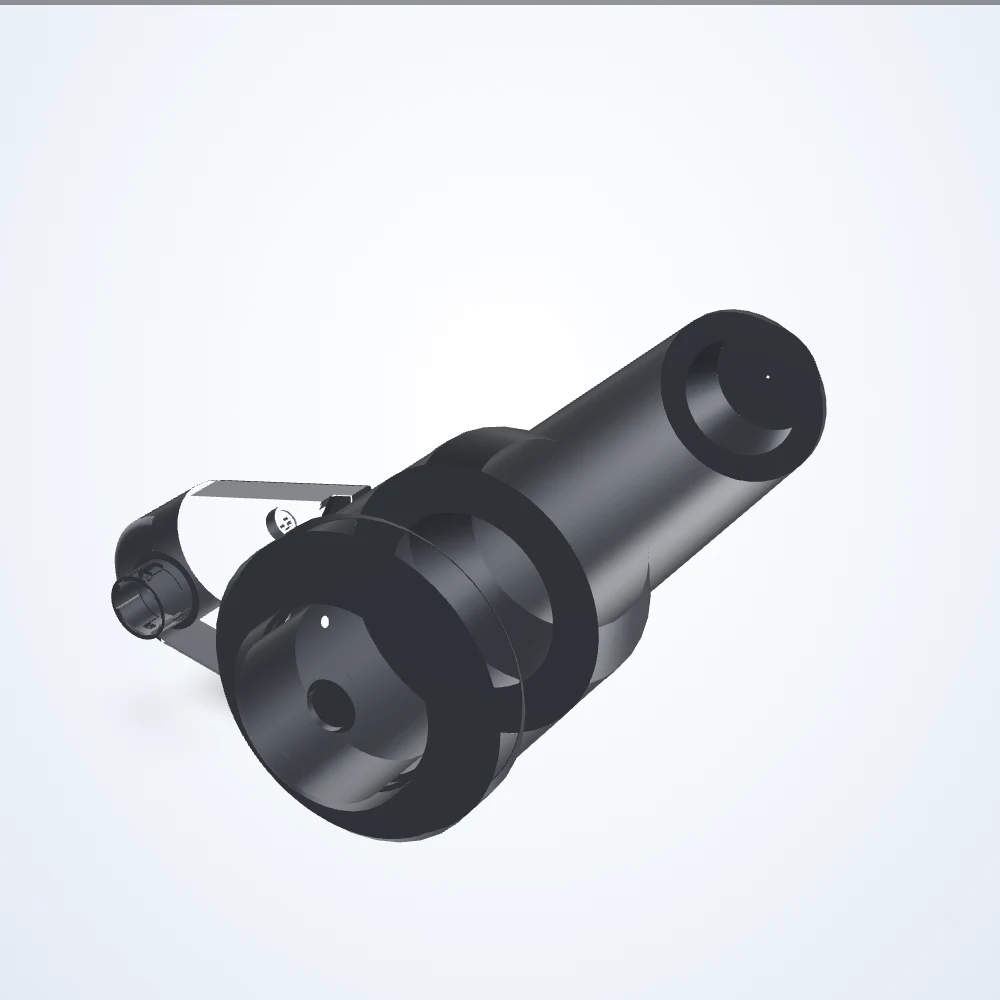

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° inspection lens, 2/3", C-mount (LS-TCL-0053)
Model LS-TCL-0053
Special inspection optics that image the sides or inner walls of a part in one shot. Connection: hr10a-7r-6pb.
Specifications
| Model | LS-TCL-0053 |
|---|---|
| Sensor format | 2/3" |
| Mount | C-Mount |
| Connector | HR10A-7R-6PB |
| Aov | 82 ° |
| Current range | -120 to +120 mA |
| Dimensions approximate | 40 x 115.2 x 115.2 mm |
| Filter thread | No Filter Threads |
| Focal power mode | No |
| Focus control | Liquid Lens |
| Fov maximum | 120 |
| Fov minimum | 10 |
| Image circle | 6.6 mm |
| Installation location | Indoor Use Only |
| Lens type | Hole Inspection |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | EL-3-10 |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Response time | 1 Millisecond |
| Setting time | 4 Milliseconds |
| Storage temperature range | 0 to 50°C |
| Working distance @ fov maximum | 68 mm |
| Working distance @ fov minimum | 11 mm |
| Working ƒ/n | f/8 |
| Weight | 264 Grams |
