360° inspection lenses

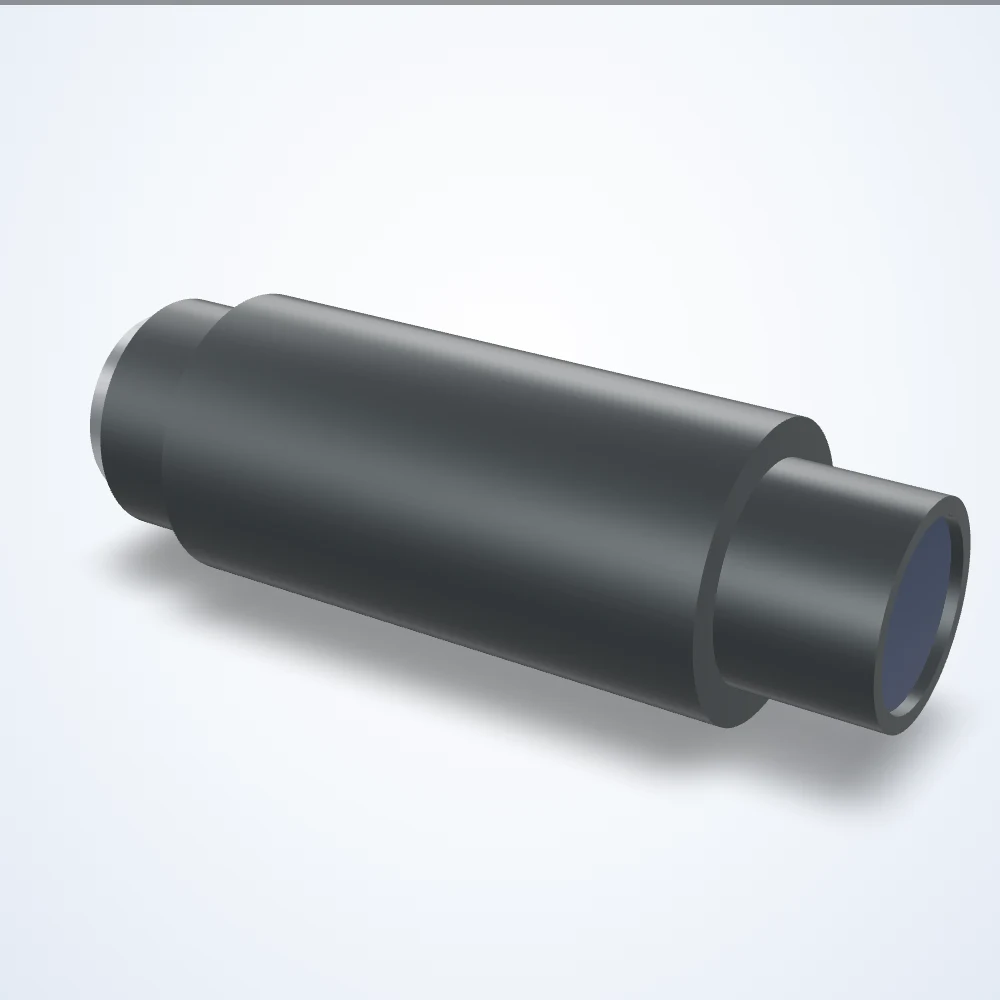

360° inspection lens, 1/2", C-mount (LS-TCL-0051)
Model LS-TCL-0051
Special inspection optics that image the sides or inner walls of a part in one shot. Connection: hirose hr10a-7r-6pb(73).
Specifications
| Model | LS-TCL-0051 |
|---|---|
| Mount | C-mount |
| Connector | Hirose HR10A-7R-6PB(73) |
| Adjustments | Back focal adjustment, camera phase adjustment |
| Aov | 82 ° |
| Clear aperture | Ø0.50 |
| Connector housing height from axis | 45.61 mm |
| Current range | -120 to +120 mA |
| Dimensions (dia. x length, mm) | 40 x 108.52 |
| Dimensions approximate | 40 x 108.5 x 108.5 mm |
| Focal power mode | Yes |
| Focus control | Liquid Lens |
| Fov maximum | 120 |
| Fov minimum | 10 |
| Front tip diameter | Ø18 (front Ø28 0/-0.10) |
| Image circle | 4.8 mm |
| Installation location | Indoor Use Only |
| Lens type | Hole Inspection |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | EL-3-10 |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Rear lens diameter | Ø13 |
| Rear protrusion behind mount | 7.70 mm |
| Response time | 1 Millisecond |
| Setting time | 4 Milliseconds |
| Storage temperature range | 0 to 50°C |
| Type | hole inspection optics |
| Working distance @ fov maximum | 65 mm |
| Working distance @ fov minimum | 8 mm |
| Working ƒ/n | f/6 |
| Weight (g) | 255 |
