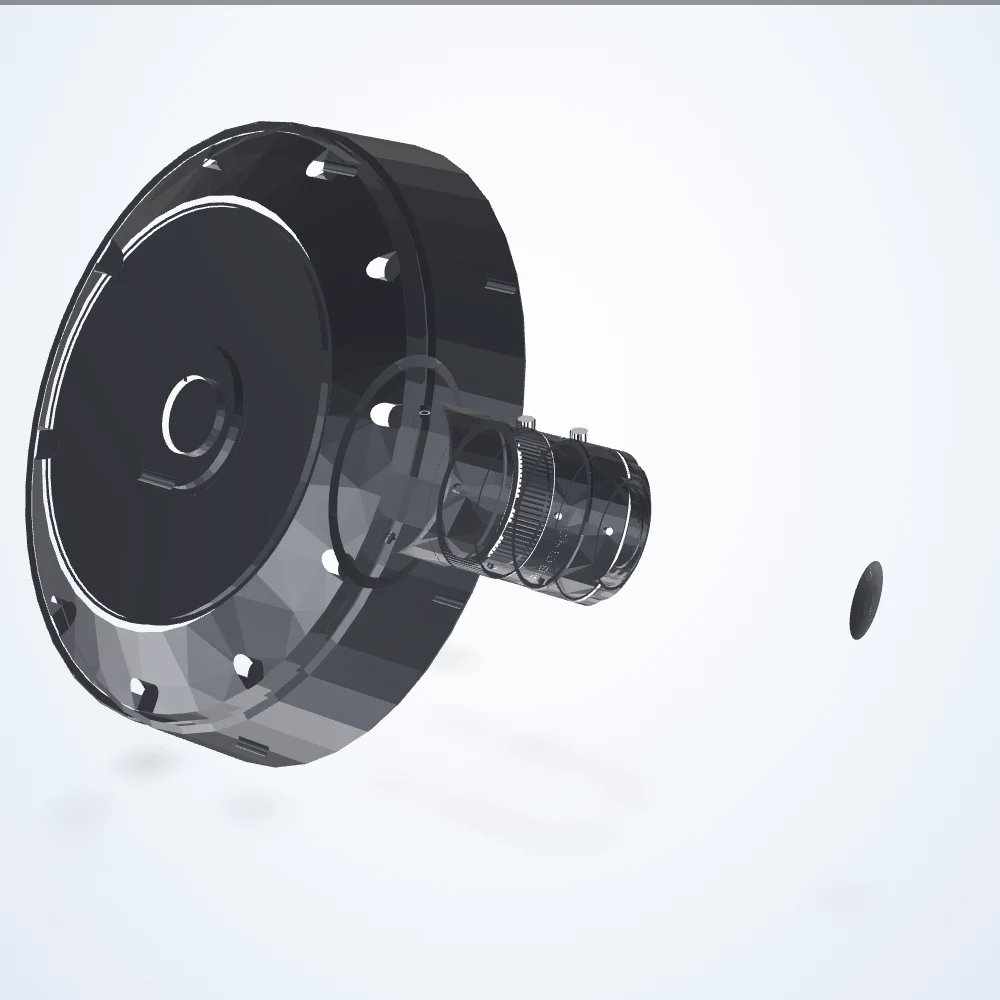

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° inspection lens, 1", C-mount (LS-TCL-0050)
Model LS-TCL-0050
Special inspection optics that image the sides or inner walls of a part in one shot.
Specifications
| Model | LS-TCL-0050 |
|---|---|
| Sensor format | 1" |
| Mount | C-Mount |
| Aov | 35 ° |
| Dimensions approximate | 113.8 x 143 x 143 mm |
| Filter thread | No Filter Threads |
| Fov @ 1/3″ | 7.5 mm Ø x 5 mm |
| Front diameter | 5 mm |
| Image circle | 9.6 mm |
| Lens type | Catadioptric |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Working distance @ fov maximum | 28 mm |
| Working distance @ fov minimum | 53 mm |
| Working distance with pccdlfat | 5 mm |
| Working ƒ/n | f/22 |
| Weight | 1002 Grams |
