Home / Lenses / 360° inspection lenses / 360° inspection lens, 1/3", C-Mount

360° inspection lens, 1/3", C-Mount (LS-TCL-0048)

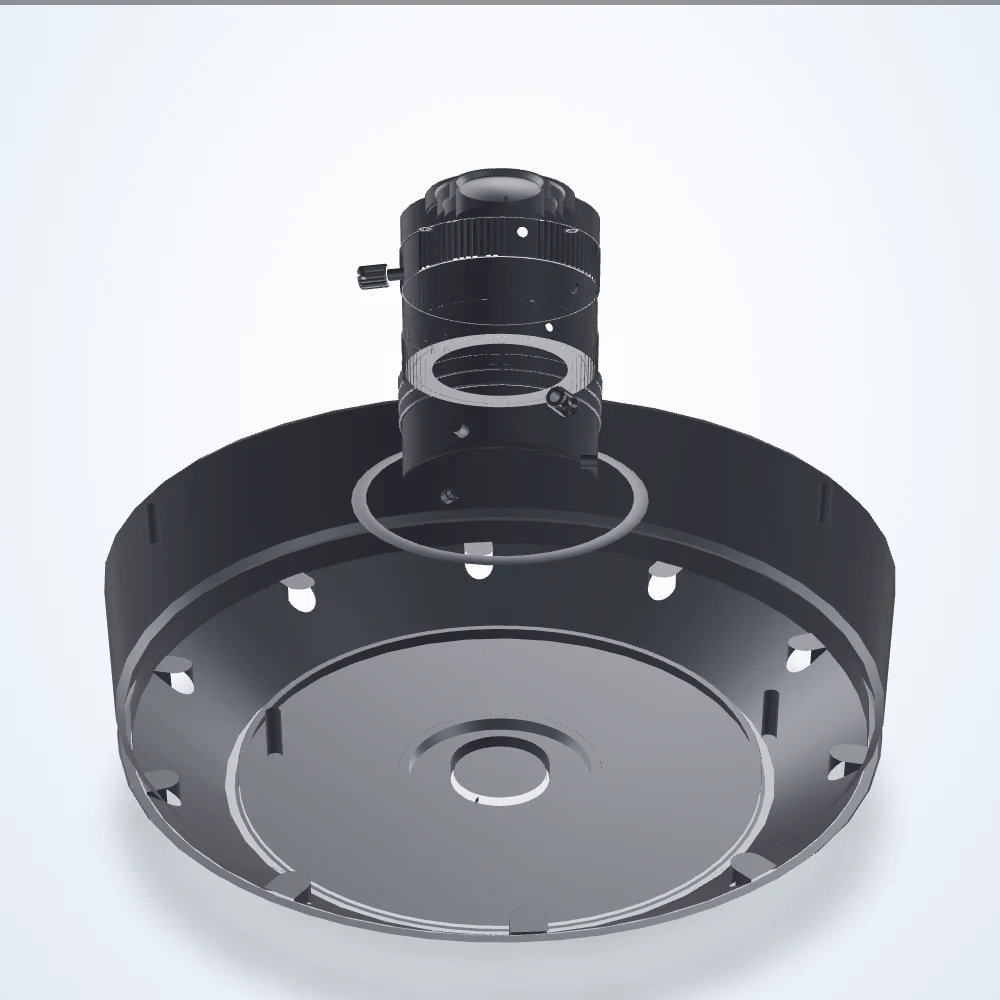

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/3", C-Mount (LS-TCL-0048)

Model LS-TCL-0048

360° inspection lens, 1/3", C-Mount.

Datasheet (PDF) - LS-TCL-0048 3D model (STEP) - LS-TCL-0048

Specifications

Model	LS-TCL-0048
Filter Thread	No Filter Threads
Front Diameter	5 mm
Image Circle Diameter	3.6 mm
Imager Format	1/3"
Lens Type	Catadioptric
Mount	C-Mount
Working ƒ/N	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
