Telecentric lenses

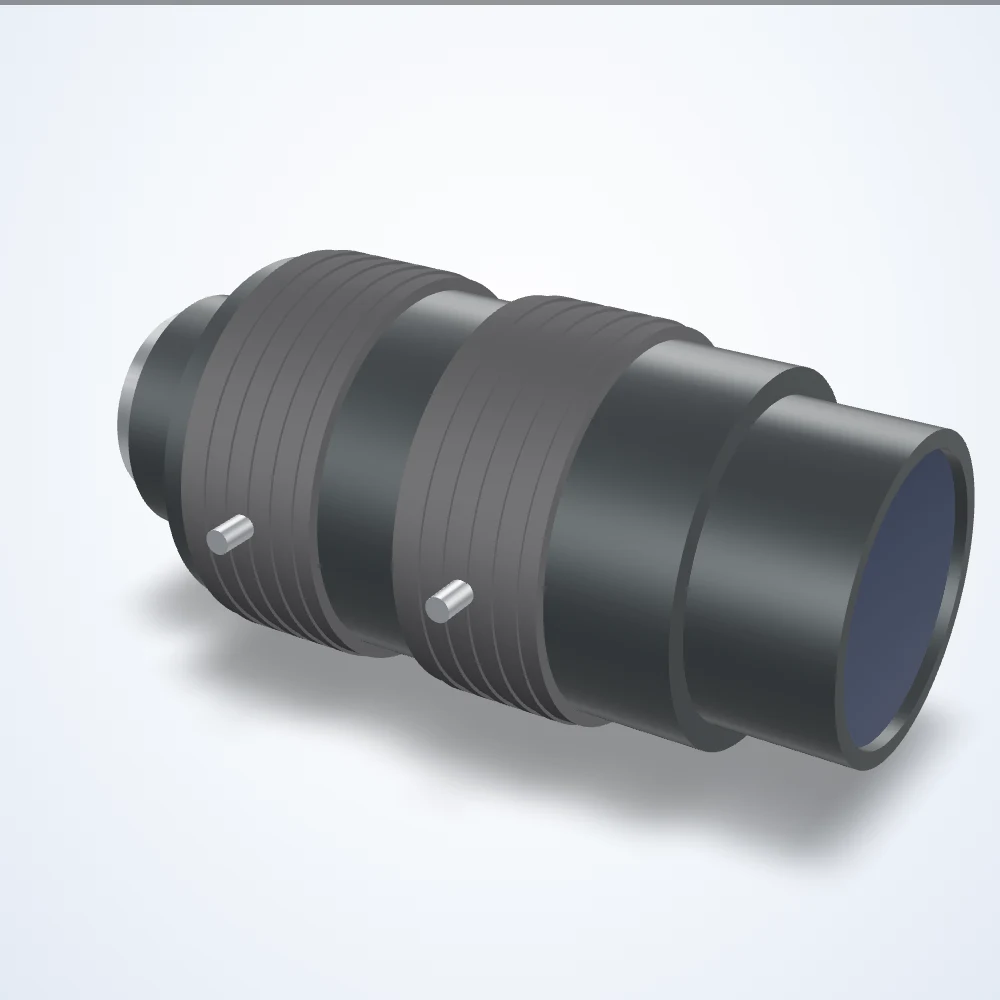

0.69 - 0.88× telecentric lens, 2/3", C-Mount (LS-TCL-0004)
Model LS-TCL-0004
0.69 - 0.88× telecentric lens, 2/3", C-Mount. Minimum object distance 111.00 mm. Aperture Telecentric.
Specifications
| Model | LS-TCL-0004 |
|---|---|
| Front Diameter | 30 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Telecentric |
| Light Spectrum | Visible |
| Magnification | 0.69 - 0.88× |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 120 |
| Resolution (Pixel Size) | 4.5 μm |
| Max. sensor format | 2/3" |
| Distortion | 0.8x: -0.009%, 0.88x: 0.005%, 0.69x: -0.001% (TV) |
| Mount | C |
| Weight (g) | 290 |
| Dimensions (dia. x length, mm) | 50 x 100.4 |
| Type | 0.8x (0.69x-0.88x) varifocal telecentric |
| Overall length (two positions drawn) | 121.5 mm (0.88x) / 100.4 mm (0.69x) |
| Magnification | 0.8x / 0.88x / 0.69x |
| N.A. (object) | 0.097 / 0.130 / 0.080 |
| Element | 8 groups 11 elements |
| Image size | 6.6x8.8mm |
| Shooting range (0.8x) | V 8.2mm, H 11.0mm, D 13.7mm |
| Working distance | 111.0mm |
| Flange back | 17.526mm in air |
| Front/rear effective dia. | Front 30.0mm / Rear 14.0mm |
| Exit pupil | -166.5mm / -381.4mm / -75.6mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Telecentricity | 99% |
