Telecentric lenses

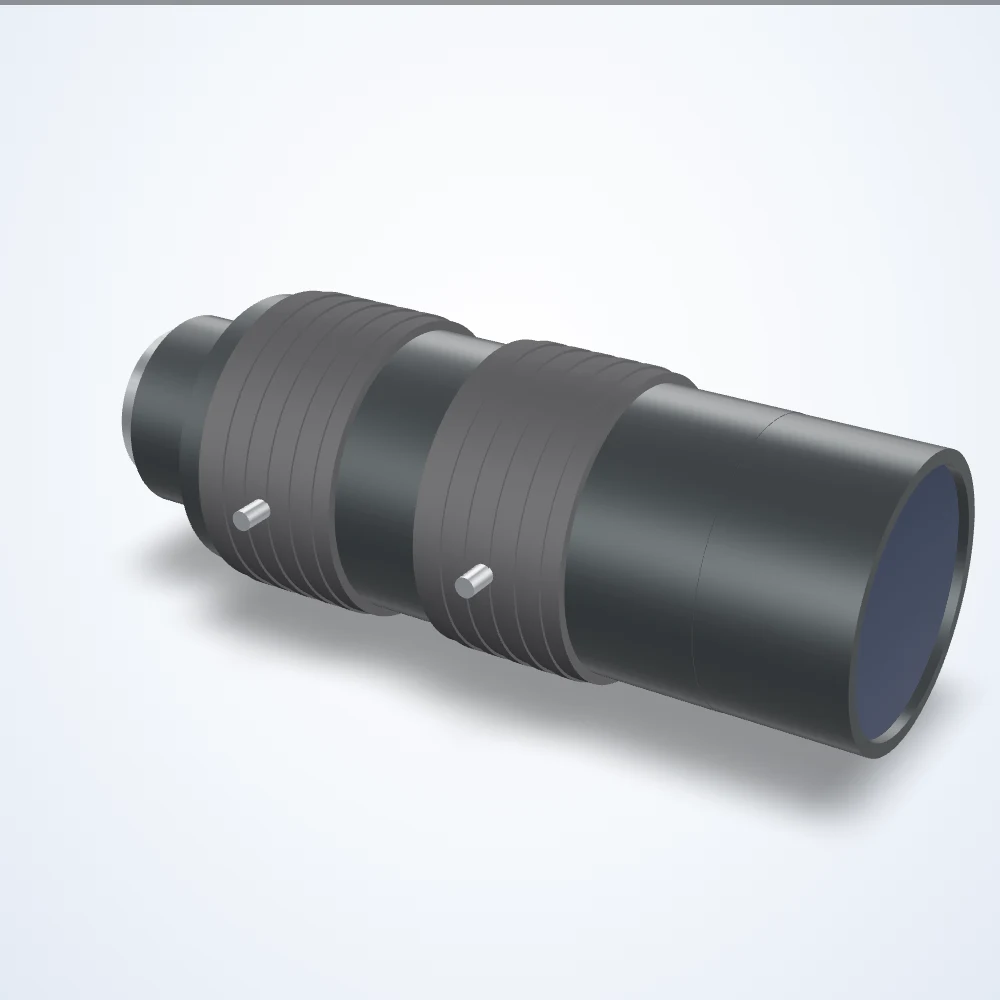

1.725 - 2.2× telecentric lens, 2/3", C-Mount (LS-TCL-0002)
Model LS-TCL-0002
1.725 - 2.2× telecentric lens, 2/3", C-Mount. Aperture Telecentric.
Specifications
| Model | LS-TCL-0002 |
|---|---|
| Front Diameter | 36.3 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Telecentric |
| Light Spectrum | Visible |
| Magnification | 1.725 - 2.2× |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 120 |
| Resolution (Pixel Size) | 4.5 μm |
| Max. sensor format | 2/3" |
| Distortion | 2.0x: 0.004%, 2.2x: 0.001%, 1.725x: 0.011% (TV) |
| Mount | C |
| Weight (g) | 420 |
| Dimensions (dia. x length, mm) | 48 x 126.95 |
| Type | 2.0x (2.2x-1.725x) varifocal telecentric |
| Overall length (two positions drawn) | 147.491 mm (WD 109.4) / 126.95 mm (WD 114.8) |
| Magnification | 2.0x / 2.2x / 1.725x |
| N.A. (object) | 0.032 / 0.026 / 0.043 |
| Element | 6 groups 10 elements |
| Image size | 6.6x8.8mm |
| Shooting range (2.0x) | V 3.3mm, H 4.4mm, D 5.5mm |
| Working distance | 2.0x: 111.4mm, 2.2x: 109.4mm, 1.725x: 114.8mm |
| Flange back | 17.526mm in air |
| Front/rear effective dia. | Front 36.3mm / Rear 11.1mm |
| Exit pupil | -86.3mm / -96.0mm / -74.5mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Telecentricity | 99% |
