Vision controllers

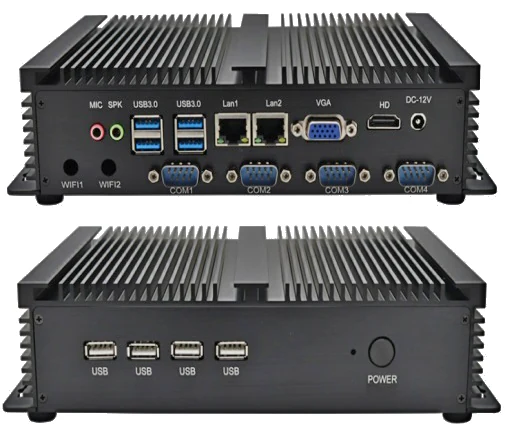

Fanless industrial PC, Intel Core i5-3317U, barebone (LS-SYGKX3317U)
Model LS-SYGKX3317U
Fanless industrial PC, Intel Core i5-3317U, barebone. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 1xSO-DIMM DDR3L Slot, max 8GB DDR3L; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD. Barebone: memory, storage and Wi-Fi are quoted with it.
Features
- Without fan, Fanless system
- Black colour Aluminum alloy case
- Can be mounted back of wall by optional long screws
Specifications
| Model | LS-SYGKX3317U |
|---|---|
| Processor | Intel Core i5-3317U |
| Processor details | Intel Core i5 3317U1.7GHz max 2.6GHz(Turbo boost Technology) 2 Core 4 threads, Intel HD Graphics 4000 |
| Configuration | Barebone: no memory, no storage and no Wi-Fi module fitted; add them to your quote request |
| I/O | HDMI, VGA, 4RS232 COM, 2RJ45 Giga LAN, 4USB3.0, 4USB2.0, MIC, SPK, LED, Switch On/Off, DC-IN, 2WiFi holes |
| Memory | 1xSO-DIMM DDR3L Slot, max 8GB DDR3L |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD |
| Wireless | Inbuilt WiFi&Bluetooth with Dual antennas(optional) |
| Operating system | Windows / Linux |
| Dimensions | 213(235) x 150 x 52 mm |
| Weight | 2.5 kg per set |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
| Certification | CE, FCC, RoHS (manufacturer) |
Applications
- Machine-vision inspection PC
- Line-side data collection and control
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LS-SYGK fanless industrial PCs series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SYGKX6157U | Intel Core i3-6157U | Price on request | 3 in stock | View |
| LS-SYGKX7020U | 7020U CPU | Price on request | 5 in stock | View |
| LS-SYGKX7200U | 7200U CPU | Price on request | 4 in stock | View |
| LS-SYGKX8250U | Intel Core i5-8250U | Price on request | 2 in stock | View |
| LS-SYGKX8550U | Intel Core i7-8550U | Price on request | 2 in stock | View |
| LS-SYGKX10210U | 10210U CPU | Price on request | 4 in stock | View |
| LS-SYGKX10510U | Intel Core i7-10510U | Price on request | 2 in stock | View |
